Description
1600 Watt 12" Dual Concentric Powered Sound Reinforcement Loudspeaker with Integrated Lab Gruppen IDEEA Class-D Amplification
Product Features

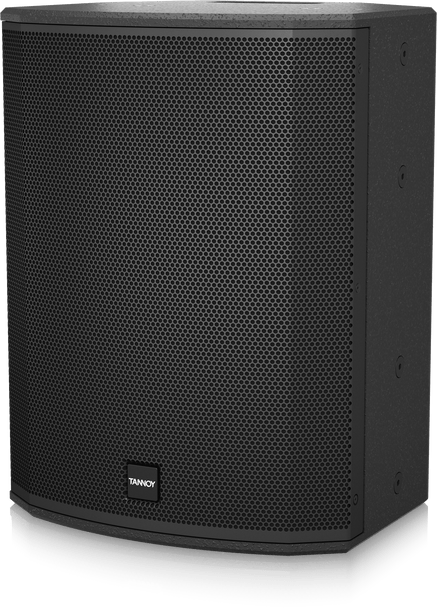

VXP 12
The VXP 12 Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio – plus includes LAB GRUPPEN IDEEA Class-D amplification. VXP 12 provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VXP 12 is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Class-D – Massive Power, Perfect Sound
Equipped with a very efficient and lightweight LAB GRUPPEN IDEEA Class-D power amplifier, the VXP 12 provides an impressive 1,600 Watts of output power in a highly portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency and eliminating the need for heavy power supplies and large heat sinks.
Dual Concentric Driver
The 1,600-Watt 305 mm (12") version of TANNOY’s VXP Series exclusive point source loudspeakers, VXP 12's Dual Concentric driver ensures high power output with high sensitivity and exceptional efficiency. VXP 12 delivers precise 90º dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration.
Performance Applications
VXP 12’s trapezoidal enclosure design provides a multitude of placement options including: FOH, floor monitor, delay, and more.
A blanking plate for optional VTH pole mounting is provided for placement atop a subwoofer in small-scale portable PA applications. Mounting options include horizontal and vertical mounting yokes (available separately), an Omnimount* for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio –
giving installers complete peace of mind.
Construction
Finished in a hard wearing semi matt black paint, the vented and internally braced cabinet is constructed from a combination of
15 mm (5⁄8") and 18 mm (¾ ") plywood – and includes a rugged powder coated perforated steel mesh grille. The rear panel connector plate carries a switch for selecting between full range (FR) or high pass filter (HPF) operation, and fully balanced input and link output on Neutrik* XLR connectors for input and link connections to additional powered enclosures. A secure locking Neutrik powerCON* connector delivers mains power to the electronics, with a selection switch for either manual (MAN) or auto (AUTO) operation.
VXP 12 loudspeakers are optimized for use LAKE LM Series controllers, and a full range of DSP settings to suit many configurations is available for free download at tannoy.com.
System
| Frequency response | 70 Hz - 25 kHz ±3 dB |
| Nominal dispersion | 75° conical @ -6 dB points |
| Directivity factor (Q) | 9.7 |
| Directivity index (DI) | 9.9 |
Power handling (IEC)
| Passive | 400 W continuous, 1,600 W peak |
| Bi-amp | LF: 400 W continuous, 1,600 W peak |
| Sensitivity | 99 dB (1 W @ 1 m) |
Maximum SPL
| Passive | 125 dB continuous, 131 dB peak |
| Bi-amp | LF: 126 dB continuous, 132 dB peak |
Impedance
| Passive | 8 Ω |
| Bi-amp | 8 Ω |
| Crossover Type | Passive / Bi-amp switchable |
| Components | 1 x 15" (380 mm) constant directivityPowerDual |
Enclosure
| Connectors | 2x Neutrik speakON* NL4 |
Wiring
| Passive | Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp | Pins 1+ / 1- LF, Pins 2+ / 2- HF |
| Dimensions H x W x D | 591 x 451 x 421 mm |
| Net weight | 25.5 kg (56.2 lbs) |
| Construction | 18 mm (3/4") enclosure / 18 mm (3/4") front, |
| Finish | Semi matt black paint (white optional) |
| Grille | Powder coated perforated steel |
| Flying hardware | M10 x 8 flying inserts |
