Description

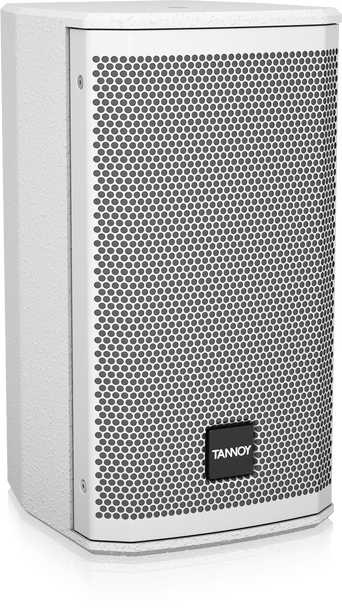

Tannoy TA-VX5.2-WH 5" Dual Concentric Full Range Loudspeaker with Low Frequency Driver for Portable and Installation Applications (White) - Sold in Pairs
The product is sold in pairs, but the price is listed per individual item.
VX 5.2-WH
Although the VX 5.2-WH is the smallest Dual Concentric full range loudspeaker in the VX range, it boasts an exceptional performance-to-size ratio. VX 5.2-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 5.2-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.
Dual Concentric Driver
The 520-Watt 125 mm (5") version of TANNOY’s VX Series point source loudspeakers, VX 5.2-WH’s constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VX 5.2-WH delivers a well defined 120 degree horizontal by 90 degree vertical dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the twin driver configuration. An additional 125 mm (5") low frequency driver is employed to provide extended bass response.
Performance Applications
VX 5.2-WH’s trapezoidal enclosure design provides a multitude of placement options including: small scale FOH, floor monitor, delay and stage front fill deployment, and more. M6 inserts for an external pole mount socket are provided for placement atop a subwoofer in small-scale portable PA applications. An extensive range of optional VX 5.2-WH high performance steel mounting hardware (available separately) includes a horizontal yoke bracket, and Omnimount spaced inserts for wall and ceiling installation, and items to facilitate pole-mounting. All hardware has been tested and certified for a greater than 5:1 safety ratio – giving installers complete peace of mind.
| Frequency response |
87 Hz - 35 kHz ±3 dB |
| Nominal dispersion |
120° H x 90° V @ -6dB points |
| Directivity factor (Q) |
7.3 |
| Directivity index (DI) |
8.6 |
Power handling (IEC)
| Passive |
130 Watts continuous, 520 W peak |
| Bi-amp |
— |
| Sensitivity |
90 dB (1 W @ 1 m) |
Maximum SPL
| Passive |
111 dB continuous, 117 dB peak |
| Bi-amp |
— |
Impedance
| Passive |
8 Ω |
| Bi-amp |
— |
| Crossover Type |
Passive with dynamic HF protection |
| Components |
1 x 5" (125 mm) LF driver |
Enclosure
| Connectors |
2x Neutrik speakON* NL4 |
Wiring
| Passive |
Pins 1+ / 1- Input, Pins 2+ / 2- Link |
| Bi-Amp |
— |
| Dimensions H x W x D |
334 x 181 x 201 mm(13.1 x 7.1 x 7.9'') |
| Net weight |
4.4 kg (9.7lbs) |
| Construction |
12 mm (1/2'') plywood, vented and internally braced |
| Finish |
Semi matt black paint (white optional) |
| Grille |
Powder coated perforated steel |
| Flying hardware |
M6 x 2 yoke bracket insert |
