Description
Digitally Steerable Powered Column Array Loudspeaker with 8 Independently Controlled Drivers, Integrated DSP and BeamEngine GUI Control for Installation Applications
Product Features

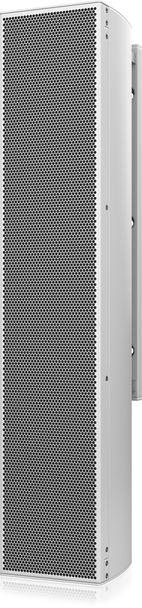

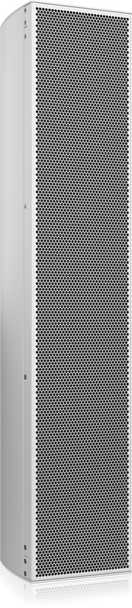

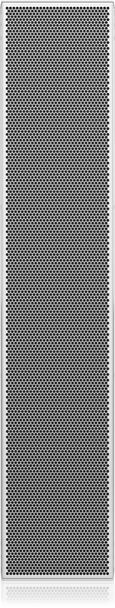

QFLEX 8
The QFLEX 8 is a powered, digitally steerable multi-channel, column array loudspeaker designed as a complete solution for installed applications with challenging acoustics, such as houses of worship, transportation hubs, convention centres, conference facilities, shopping malls, performing arts centres and museums. The heart of the system is our proprietary VNET loudspeaker networking platform, which comprises both software and hardware DSP components that produce extremely-high speech intelligibility and complete loudspeaker system diagnostics and monitoring.
Class-Leading Control
While many competing steerable arrays allow only a modest steering range across specific frequencies, the QFLEX 8 has a classleading ±70° steering control, plus 8 channels of integrated DSP and amplification for consistent and highly intelligible full-range voice and music applications.
A Revolution in Sound Technology
The first digitally steerable column array loudspeaker of its kind, QFLEX 8’s revolutionary BeamEngine technology steers the full-range sound away from surfaces that cause reflections. The intuitive BeamEngine GUI allows the designer to specify target areas. Rather than only providing a limited palette of opening and steering angles, the BeamEngine GUI generates a steering algorithm that is tailored for that specific area. The resulting asymmetrical pattern delivers similar sound pressure levels (SPL) in both the near and far field for superb coverage and intelligibility – all in a very aesthetically-pleasing package.
Configuration

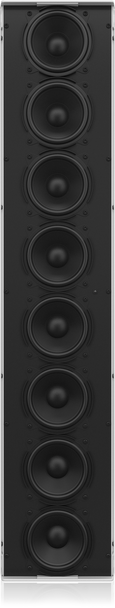

| 4" LF | 8 |
| No. of Amp Channels 100 W (RMS) @ 4 Ohms | 8 |
| Vertical Dispersion | Variable between 10 - 100 degrees(Asymmetric & multiple beams may alsobe generated) |
| Frequency Range | 110 Hz - 4 kHz |
| Horizontal Dispersion | 120 degrees |
| Aiming Angle Limit | ± 70 degrees |
| LF Beam Control Limit | 700 Hz |
| Maximum SPL @ 100 ft (30 m)* | 92 dB |
| Column Height | 840 mm (33") |
| Column Width | 171.5 mm (6.7") |
| Column Depth | 150 mm (5.9") |
| Typical Application Distance** | 50 m (66 ft.) |
| Sample Rate | 96 kHz |
| Audio Inputs | Analogue & AES/EBU |
| Net Weight | 14.5 kg (31.9 lbs) |
Accessories
| Mains supply | 100-230 V~ 50/60 Hz |
| Max Input power/watts | 220 |
