Tannoy TA-CMS503DC-LP 5" Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications (Low Profile) - Sold in Pairs

The product is sold in pairs, but the price is listed per individual item.

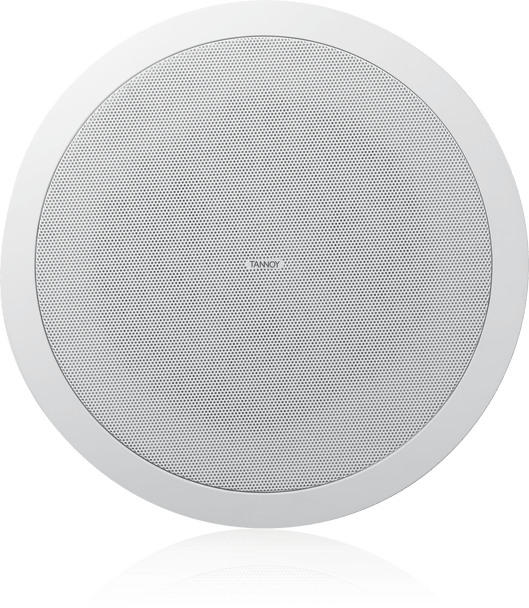

Tannoy CMS 503DC LP is a low profile 5" Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications.

This unit contains a full bandwidth 240-Watt high sensitivity loudspeaker that utilizes Tannoy's third generation Ceiling Monitor System technology (CMS 3.0). Because of the all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC LP delivers wide and consistent broadband directivity with enhanced intelligibility. Experience the highly accurate and linear response this speaker has.

Having been specifically designed with a 4 way self-aligning clamp system, this unit provides fast and simple installation. The cost effective CMS 503DC LP features an ultra-shallow back can for applications where cavity space is limited, and a removable locking screw terminal connector with loop-thru functionality. This unit comes with two tile support rails, one C-ring, a low-insertion loss 30 W transformer with a convenient front panel tap switching, and a paintable powder coated steel mesh grille with dust protection.

This speaker is finished in semi-matte white and optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.

Tannoy CMS 503DC LP Features:

• Full range ceiling loudspeaker for installation applications
• 60 Watts continuous, 240 Watts peak power
• Next generation 5" Dual Concentric driver featuring Omnimagnet technology
• Torus Ogive waveguide for improved high frequency response and directivity
• Ultra-shallow depth profile for applications where cavity space is restricted
• UL 1480 certified for general signaling systems
• UL 2043 certified for air-handling spaces
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Low insertion loss 30 W line transformer with easily accessible tapping switch
• Optimised for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
• Semi matt white finish fits unobtrusively in any environment
• Powder coated UV resistant perforated steel mesh grille with dust protection
• Removable magnetic grille for custom painting
• Optional ARCO designer grilles available for minimal architectural impact
• Self-aligning 4 way clamp mounting system
• Mounting C-ring and ceiling tile rails included
• 10-Year Manufacturer Warranty Program
• Designed and engineered in England
• NOTE: For specifications please refer to the "Product Information Document" located in the documentation tab above.
