Description
Focus Spot One Details
The ADJ Focus Spot One is a 35W LED Moving Head with a 3W UV included for black lighting or additional color hues. In addition, ADJ has fitted the FS1 with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. The Focus Spot One features motorized focus, Gobo Indexing and EZ Gobo replacement.
The Focus Spot One is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a an LED spot Moving Head. It has 15 & 17 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu.
Specifications
• High Output LED Moving Head Wash
• 1 x 35W Cool White LED
• 1 x 3W UV LED
• 16-degree beam angle
• Motorized Focus
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• 4 Built-in lighting shows
• 15 & 17 DMX channel modes
• 8 Colors + Spot & Split Colors
• 6 Rotating, replaceable Gobo’s + Spot
• Gobo Indexing
• Gobo Size: Outer: 23.8mm/Inner:19mm/Thickness: 0.2mm
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement
• Pan: 540-degree; Tilt: 240-degree
• Gobo Shake effect
• 16-Bit Fine Pan/Tilt control
• 4-Button DMX LED menu
• Stepper motors with micro stepping

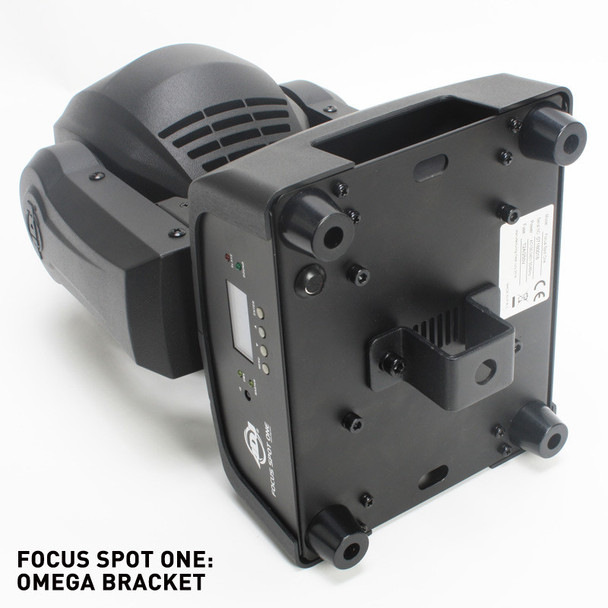

• Includes Omega bracket for truss mounting
• 3-pin XLR In/Out
• With Wired Digital Communication Network
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR & Airstream IR Compatible (Sold Separately)
• PowerCON AC In/Out on rear to daisy chain power (up to 19 Focus Spot One’s @ 120V and 35 Focus Spot One’s @ 240V )
• Light Source: 1 x 35W Cold White LED
• PWM (Pulse Width Modulation): 1.2K
• Strobe Rate: 0.5-20HZ
• DB Rating @ 1Meter: Front: 51.4; Back: 53.2; Left: 54.9;
Right: 52
• Long Life LED (Rated at approximately 50,000 hrs)
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 81W
• Dimensions (LxWxH): 7.75” x 8.75” x 14.25”/ 197 x 221 x 360mm
• Weight: 12.5 lbs. /5.7 kgs.
• ETL Approved
• Includes: Omega bracket to hang on truss & 5-foot powerCON power cord
MYDMX AMIGO Details
myDMX Amigo is an entry level DMX hardware dongle designed to work with myDMX 1 software. myDMX Amigo plugs directly into a 3-pin DMX input on your lighting fixture or can be connected to a standard, 3-pin DMX cable to extend your data run. The dongle connects to a computer via a USB connection. It offers 128 LIVE DMX control channels when operated via a PC and 48 Stand Alone channels when programs are stored directly into the interface memory (Stand Alone power supply sold separately (Model: MYD125).
Download the myDMX 1 for myDMX Amigo here in the download section.
MYDMX AMIGO Specifications
Specifications:
• Windows based (Out of the box. However, feature, software and Mac compatibly upgrades available at www.dmxsoft.com)
• Easy-to-use DMX software
• 128 DMX channels (LIVE)
• 48 DMX channels (STAND ALONE)
• Extensive fixture profile library
• Works with simple scenes/steps
• Laptop or desktop computer with USB port
• Windows 7 & 8 compatible (64-Bit compatible)
• Dimensions (LxW): 3” x 1”/ 75 x 18mm
• 1-Year Limited Warranty
Best Performance System Requirements:
• Laptop or desktop computer with USB port
• Windows 7 & 8 compatible (64-Bit compatible)
• 1280x1024 screen resolution
• 512MB Memory
• Clock frequency: 1.5 GHz
• 128MB RAM video card supporting Microsoft DirectX 9.0
• Open GL 3.1 or higher
