Description
Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) box includes
- Limited 2-Year Warranty

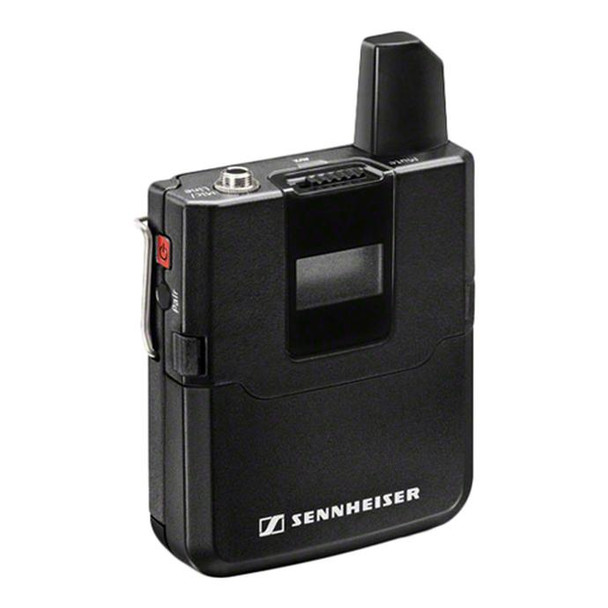

Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) overview
Designed in collaboration with creative professionals for film and electronic news gathering (ENG) applications, the Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) features an innovative design that is fully self-configuring which makes setup fast and easy. The system's link protection helps ensure reliable audio transmission and the AES 256 encryption helps protect your signal from unauthorized interception.
The bodypack transmitter features a 3.5mm jack and accepts either a microphone with a maximum input of 2.2V RMS (50 to 20,000 Hz response) or a line level source with a maximum input of 3.3V RMS (20 to 20,000 Hz response) for a wide variety of sources. The unit is powered by an optional Li-ion 3.7V battery and has an operating time of 15 hours.
Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) System
- Frequency Response: 20 to 20,000 Hz
- Dynamic Range: > 120 dB (A)
- THD: Typical 0.1%
- Audio Sampling: 24-bit at 48 kHz
- Signal to Noise Ratio: > 90 dB (A)
- RF Frequency Range: 1880 to 1930 MHz (country specific)
- Modulation: GFSK with return channel
- Diversity: TDMA fast switching antenna diversity
- Latency: 19 ms
- Temperature Range: Operation: 14 to 131° F (-10 to +55° C)Storage: -4 to 158°F (-20 to +70°C)
Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) Transmitter
- Transmission Power: 100 mW average (250 mW peak), country specific
- Frequency Response: Mic: 50 to 20,000 Hz Line: 20 to 20,000 Hz
- Microphone Max Input Level: Mic: 2.2 V RMS
- Line Max Input Level: 3.3 V RMS
- Input Impedance: 1 MOhm
- Input Sensitivity: Automatic sensitivity adjustment
- Power Supply: Optional Battery: Li-ion 3.7 V
- Operating Time: Typical: 15 hour with Energy pack
- Input Connector: 1/8" (3.5 mm) jack
- Weight: 3.1 ounces (87.0 g) excluding energy pack
Sennheiser AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz) Packaging Info
- Package Weight: 0.95 lb
- Box Dimensions (LxWxH): 13.8 x 3.3 x 2.7"
