Sennheiser EW-DP ME 2 SET Camera-Mount Digital Wireless Omni Lavalier Mic System (R1-6: 520 to 576 MHz)
Production has enough challenges; sound doesn't need to be one of them. The gold standard in wireless audio for video has evolved. EW-DP is the digital successor of the G4 portable sets. It is a versatile and feature-rich system for videography, filmmaking, news gathering and any other audio for video application in which reliability and simplicity are key.

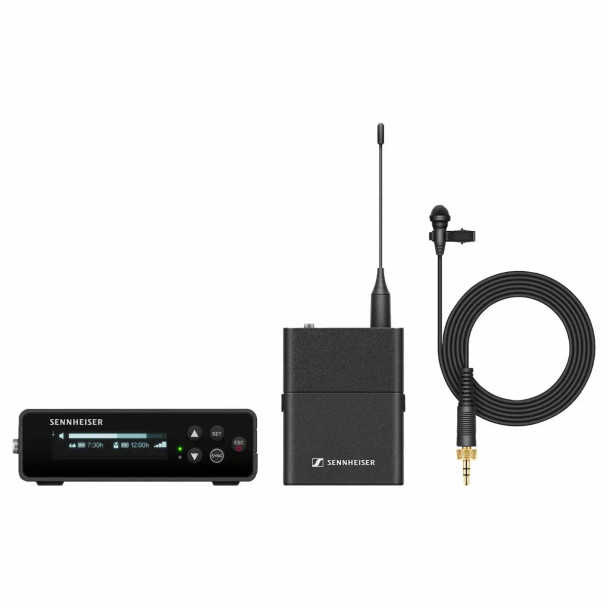

Time is measured differently on set. Seconds converted into frames, minutes into card space, hours into precious remaining daylight. EW-DP will change the way you think of sound on set. A wireless microphone system that puts time on your side by blending best-in-class technology with an ergonomic build. Fully digital UHF guarantees cutting-edge signal clarity and reliability, and an innovative magnetic stacking system makes set-up a snap. Smart Notifications quickly identify missed yet critical problems, so you're never caught off guard. Auto frequency coordination locates, organizes, and maximizes frequency usage with precision ensuring you find the most reliable signal in seconds. The Smart Assist app puts the control in the palm of your hand, allowing you to adjust your system at camera or across the room. Whether you're a crew of one or many, EW-DP is the ideal partner to simplify your audio workflow. After all, production has enough challenges; sound doesn't need to be one of them. Portable digital wireless set. Includes (1) EW-DP EK digital portable single channel receiver, (1) EW-D SK digital bodypack transmitter, (1) ME 2 omnidirectional lavalier microphone, (1) Mounting kit (cheeseplate, cold shoe, belt clip & screws), (1) BA 70 liion battery & (2) AA battery, (1) Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable, (1) Locking 3.5 mm TRS plug to XLR plug cable and (1) USB-C charging cable.
Sennheiser EW-DP ME 2 SET (R1-6) Lavalier Mic Set Features:
- Intuitive user interface provides a stress-free experience.
- Innovative and flexible mounting solutions seamlessly integrate into your workflow.
- All the advantages of a digital UHF system in a compact portable package.
- Fully digital UHF system designed for filmmaking & video applications.
- Industry leading 134 dB dynamic range for distortion free transmission.
- Integrated Bluetooth for synchronization and control.
- Intelligent battery management provides operating time (hours:minutes).
- Extended battery life: up to 12h on transmitter, 7h on receiver.
- Magnetic, stackable, and versatile mounting options.
- Up to 56 MHz bandwidth for flexibility in any RF environment.
- Exceptionally low latency (1.9 ms).
- Plug-on transmitter: XLR & 3.5 mm inputs, +48V & recording via microSD.
- External charging and powering via USB-C (receiver only).
- Smart Assist app for monitor & control.
- Fully digital UHF wireless microphone system for video applications.
- Integrated Bluetooth for synchronization and control.
- Smart Notifications for troubleshooting and system guidance.
- Intelligent battery management provides operating time (hours:minutes).
- Extended battery life: up to 12h on transmitter, 7h on receiver.
- Magnetically stackable components for versatile mounting.
- Industry leading 134 dB dynamic range for distortion free transmission.
- Up to 56 MHz bandwidth for flexibility in any RF environment.
- Exceptionally low latency (1.9 ms).
- External charging and powering via USB-C (receiver only).
- Smart Assist app for monitor & control.
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only).
System
Wireless Technology |
Digital UHF
|
Number of RF Channel Frequencies |
2240
|
Included Transmitters |
1x Bodypack
|
Diversity |
Intelligent Switching Diversity
|
RF Frequency Band |
520 to 576 MHz
|
RF Bandwidth |
56 MHz
|
Frequency Step Size |
25 kHz
|
RF Channel Scanning |
Auto-Scan
|
Max Operating Range |
328.1' / 100 m (Line of Sight)
|
Max Transmitters per Band |
58
|
Built-In Recorder |
No
|
Mobile App Compatible |
Yes: Android & iOS App Name: Sennheiser Smart Assist Functionality: Adjust Settings, Remote Control, Setup
|
Bluetooth |
5.1 LE
|
Bluetooth Operating Distance |
120' / 36.6 m (Transmitter Sync, App Control)
|
Sample Rate/Resolution |
24-Bit
|
Latency |
1.9 ms
|
Dynamic Range |
134 dB
|
Encryption |
No
|

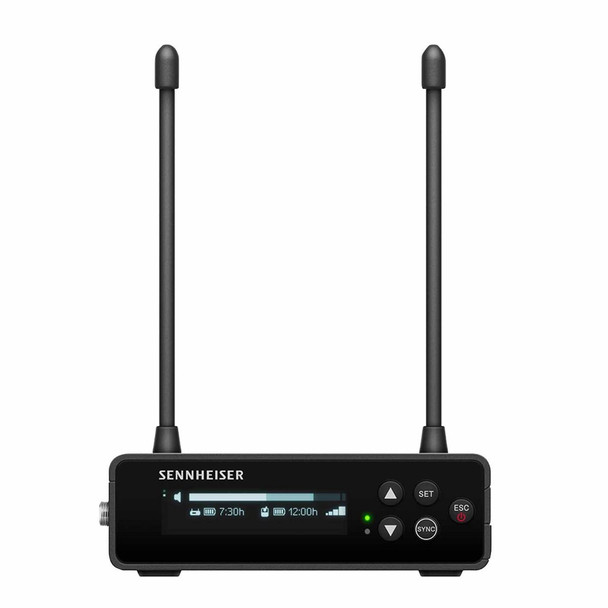

Receiver
Receiver Type |
Camera-Mount
|
Mounting Options |
Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)
|
Antenna |
2x 1/4 Wave Rod, Fixed
|
Number of Audio Channels |
1
|
Audio I/O |
1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking) 1x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output (Locking)
|
Audio Output Level |
1/8" / 3.5 mm Output: 2 dBV (Max, Unbalanced)
|
Frequency Response |
20 Hz to 20 kHz ±3 dB
|
Network I/O |
No
|
Word Clock I/O |
No
|
USB/Lightning Connectivity |
1x USB-C Female (Bus Power, Charging)
|
RF Output Power |
10 mW (EIRP)
|
Power Requirements |
Battery, Bus Power (USB)
|
Battery Type |
2x AA (Included) 1x Sennheiser Battery Pack (Included)
|
Approx. Battery Life |
7 Hours
|
Display & Indicators |
1x Backlit OLED (AF Level, Frequency, Mute, RF Level, Transmitter Battery Status)
|
Operating Temperature |
14 to 131°F / -10 to 55°C
|
Operating Humidity |
5 to 95%
|
Dimensions |
3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
|
Weight |
0.3 lb / 140 g
|
Transmitter
Transmitter Type |
Bodypack
|
RF Output Power |
10 mW (ERP) Up to 10 mW (EIRP)
|
Audio I/O |
1x 1/8" / 3.5 mm TRS Female Input (Locking)
|
Muting |
Mute Switch
|
Audio Input Level |
2 to 4.35 V RMS
|
Auto-Level Control |
No
|
Frequency Response |
20 Hz to 20 kHz
|
Sync Method |
Bluetooth
|
Antenna |
1x Flexible Whip, Fixed (Beltpack)
|
Power Requirements |
Battery
|
Battery Type |
2x AA (Included) 1x Sennheiser Battery Pack (Included, Replaceable)
|
Approx. Battery Life |
8 Hours (Alkaline) 12 Hours (Sennheiser Battery Pack)
|
Display & Indicators |
1x LED (Mute) 1x LED (Sync)
|
Housing |
Metal
|
Dimensions |
2.5 x 3.1 x 0.8" / 63 x 80 x 20 mm (without Antennas)
|
Weight |
4.2 oz / 120 g (without Batteries)
|
Microphone
Microphone Type |
Lavalier
|
Color |
Black
|
Sound Field |
Mono
|
Capsule |
Electret Condenser
|
Polar Pattern |
Omnidirectional
|
Frequency Range |
50 Hz to 18 kHz
|
Equivalent Noise Level |
32 dB
|
Maximum SPL |
130 dB SPL
|
Sensitivity |
17 mV/Pa at 1 kHz
|
Output Connector |
1x 1/8" / 3.5 mm TRS Male (Locking)
|
Cable Length |
5.2' / 1.6 m
|
Operating Voltage |
7.5 V
|
Charging Case
Capacity |
Not Specified by Manufacturer
|
Packaging Info
Package Weight |
1.795 lb
|
Box Dimensions (LxWxH) |
12.4 x 8 x 3.1"
|
