Description

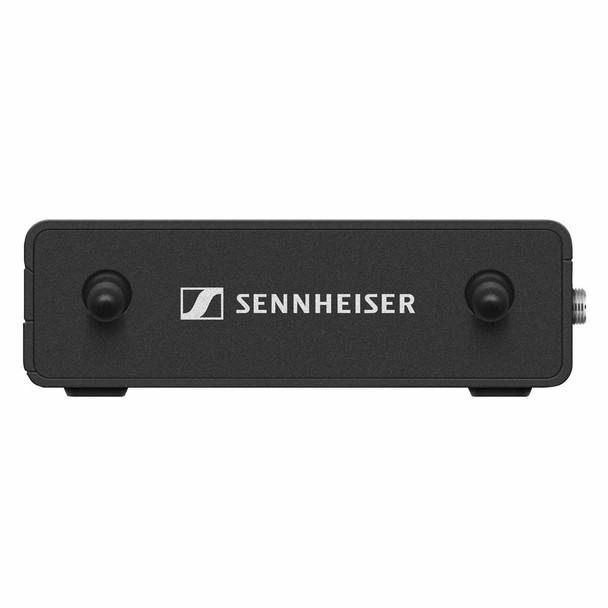

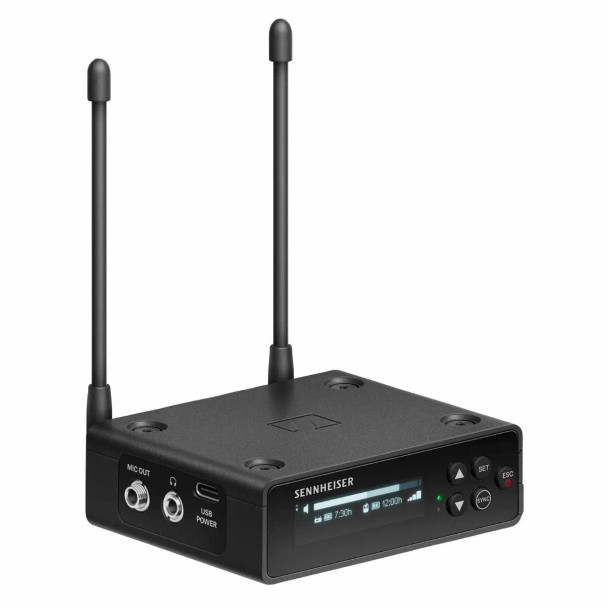

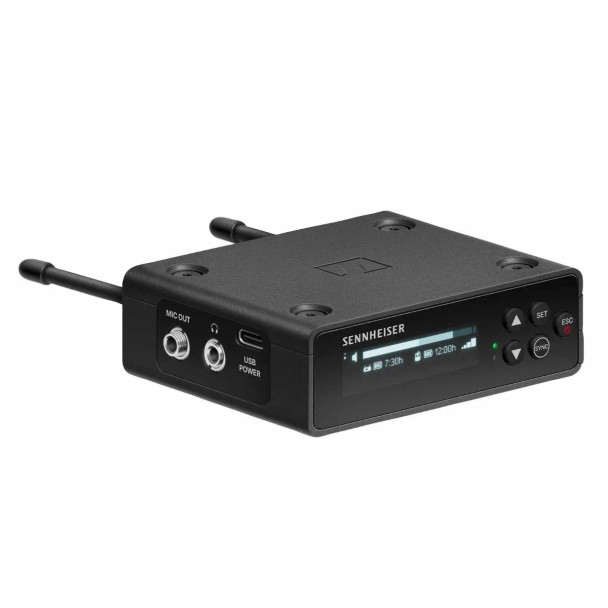

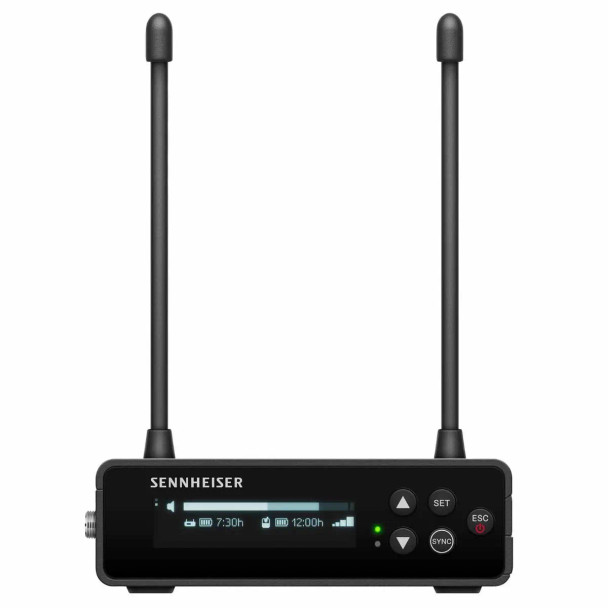

Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (R1-6: 520 to 576 MHz)
Production has enough challenges; sound doesn't need to be one of them. The gold standard in wireless audio for video has evolved. EW-DP is the digital successor of the G4 portable sets. It is a versatile and feature-rich system for videography, filmmaking, news gathering and any other audio for video application in which reliability and simplicity are key.
Time is measured differently on set. Seconds converted into frames, minutes into card space, hours into precious remaining daylight. EW-DP will change the way you think of sound on set. A wireless microphone system that puts time on your side by blending best-in-class technology with an ergonomic build. Fully digital UHF guarantees cutting-edge signal clarity and reliability, and an innovative magnetic stacking system makes set-up a snap. Smart Notifications quickly identify missed yet critical problems, so you're never caught off guard. Auto frequency coordination locates, organizes, and maximizes frequency usage with precision ensuring you find the most reliable signal in seconds. The Smart Assist app puts the control in the palm of your hand, allowing you to adjust your system at camera or across the room. Whether you're a crew of one or many, EW-DP is the ideal partner to simplify your audio workflow. After all, production has enough challenges; sound doesn't need to be one of them. Portable digital UHF receiver for use with EW-D SK bodypack, EW-D SKM-S handheld, and EW-D SKP plug-on transmitters.
Sennheiser EW-DP EK (R1-6) Single Channel Receiver Features:
- Intuitive user interface provides a stress-free experience.
- Innovative and flexible mounting solutions seamlessly integrate into your workflow.
- All the advantages of a digital UHF system in a compact portable package.
- Fully digital UHF system designed for filmmaking & video applications.
- Industry leading 134 dB dynamic range for distortion free transmission.
- Integrated Bluetooth for synchronization and control.
- Intelligent battery management provides operating time (hours:minutes).
- Extended battery life: up to 12h on transmitter, 7h on receiver.

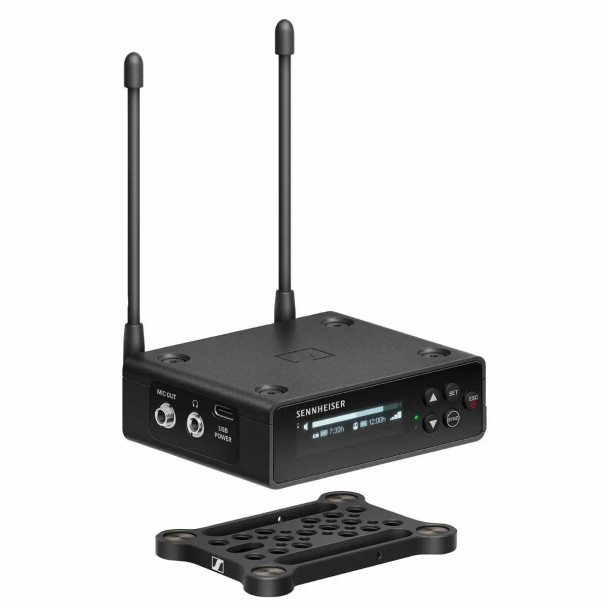

- Magnetic, stackable, and versatile mounting options.
- Up to 56 MHz bandwidth for flexibility in any RF environment.
- Exceptionally low latency (1.9 ms).
- Plug-on transmitter: XLR & 3.5 mm inputs, +48V & recording via microSD.
- External charging and powering via USB-C (receiver only).
- Smart Assist app for monitor & control.
- Fully digital UHF wireless microphone system for video applications.
- Integrated Bluetooth for synchronization and control.
- Smart Notifications for troubleshooting and system guidance.
- Intelligent battery management provides operating time (hours:minutes).
- Extended battery life: up to 12h on transmitter, 7h on receiver.

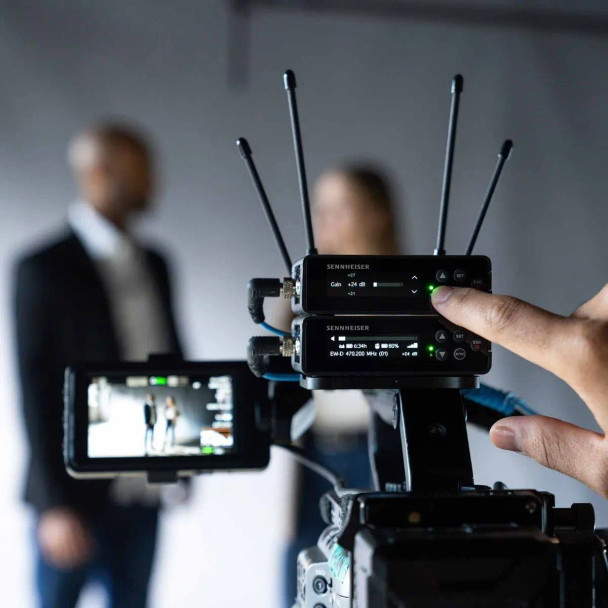

- Magnetically stackable components for versatile mounting.
- Industry leading 134 dB dynamic range for distortion free transmission.
- Up to 56 MHz bandwidth for flexibility in any RF environment.
- Exceptionally low latency (1.9 ms).
- External charging and powering via USB-C (receiver only).
- Smart Assist app for monitor & control.
- Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only).
| System Audio link frequency ranges | |
|---|---|
| Q1-6 | 470.2 - 526 MHz |
| R1-6 | 520 - 576 MHz |
| R4-9 | 552 - 607.8 MHz |
| S1-7 | 606.2 - 662 MHz |
| S4-7 | 630 - 662 MHz |
| S7-10 | 662 - 693.8 MHz |
| U1/5 | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz |
| V3-4 | 925.2 - 937.3 MHz |
| Y1-3 | 1785.2 - 1799.8 MHz |
| System | |
| Bluetooth Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| EW-DP EK | |
| Input voltage | ~ 1.8 - 4.35 V |
| Input current | Typ. < 250 mA / Max. < 400 mA (BA 70) Typ. < 400 mA / Max. < 750 mA (2x AA batteries) < 300 mA@5 V (USB-C standalone) |
| Power Supply | 2x AA batteries 1.5V or BA70 rechargeable battery pack or USB-C PD power supply (max.):
|
| Transmit power (radiated) | BLE: max. 10 mW EIRP |
| Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) |
| Headphone Output | < 50 mW into 16 Ohms |
| Dimensions | 86 x 67 x 28 mm (3.39" x 2.64" x 1.1") |
| Weight (without antennas and power supply) |
approx. 140g (0.31 lbs) |
