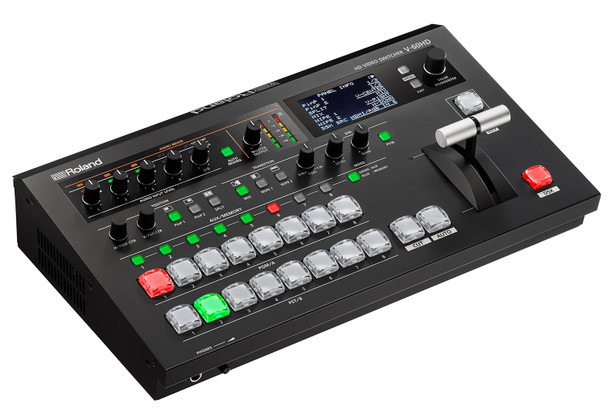

VIDEOVideo Processing4:2:2 (Y/Pb/Pr), 8-bitInput ConnectorsSDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI IN 5--6: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
RGB/COMPONENT IN 6: HD DB-15 type x 1
* INPUT 6: HDMI or RGB/COMPONENT selected.
* Multi-format SupportedOutput ConnectorsSDI OUT 1--2: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
* HDCP SupportedInput formatsSDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/60p *1, *3
720/50p *1, *4
1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
HDMI IN 5:
HDMI/RGB/COMPONENT IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/60p, 1080/59.94i, 1080/60i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).Still ImageBitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
JPG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 2 files in the internal memory.
* It can be exported in the USB memory.
* PNG alpha channel not supported.Output formatsSDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i)
1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).HDMI MULTI-VIEW:1080/59.94p, 1080/50pVideo EffectsTransition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern outputAUDIOAudio ProcessingSampling rate: 24 bits/48 kHzAudio formatsSDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2chInput ConnectorsDigital: SDI IN 1--4: BNC tyep x 4
HDMI IN 5--6 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
AUDIO IN 5--6: RCA phono typePhantom PowerDC 48 V (unloaded maximum), 10 mA (maximum load)
* Current value per channelOutput ConnectorsDigital: SDI OUT 1--2: BNC type x 2
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
Analog: AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone typeInput LevelAUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu)Input ImpedanceAUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu)
AUDIO IN 5--6: 15 k ohmsOutput LevelAUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohmsAudio EffectsAuto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, LimiterOTHERSOther ConnectorsUSB MEMORY: USB A type (for USB flash drive)
TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
CONTROL: RJ45 100BASE-TX (for Remote Control)lOther FunctionsPreset Memory (8 types)
Panel lock function
EDID Emulator
Smart Tally
Auto Scan
Remote Camera ControlDisplayGraphic LCD: 128 x 64 dotsPower SupplyAC AdaptorCurrent Draw3.1 APower Consumption37.0 WOperation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitDimensions356 (W) x 221 (D) x 96 (H) mm
14-1/16 (W) x 8-3/4 (D) x 3-13/16 (H) inchesWeight (excluding AC adaptor)3.0 kg
6 lbs 10 ozAccessoriesOwner's Manual
AC adaptor
Power cord
