RCF UP-2162 2 Channel Amplifier (70V/ 4 ohm/ Aux Input)

Write a Review

$1,099.00

Description
Delivery & Returns
Customer Reviews

Description

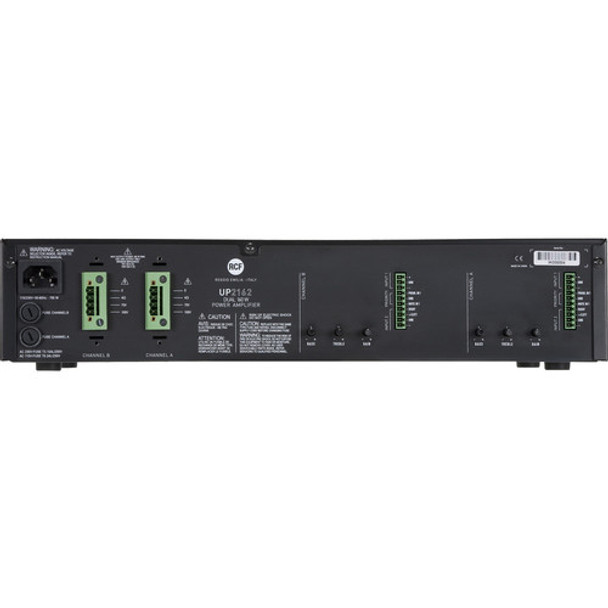

RCF UP2162 Overview

The UP 2162 Power Amplifier from RCF features two separated and independent 160W amplifiers. Each amplifier section has two audio inputs, of which one is with Priority function through a closing contact. Both audio inputs are at Line level for pre-amplified signals or music sources such as CD players and tuners. The amplifier output is available for either low impedance (min. 4 ohm) loudspeakers, or for loudspeakers with a 100-70V transformers. This Class D amplifier features a switching power supply. It is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems and similar applications.

Designed for the transmission of announcements and musical programs

Main input on removable connector

AUX input for music sources removable connector

Controls for Treble, Bass and Gain on the AUX input

Main input can have priority over the Aux input (by means of an external command linked to the removable connector)

Output speaker available either for low impedance loudspeakers (min. 4 ohms) or 100 - 70 V constant voltage line

Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

In the Box

RCF UP 2162 Power Amplifier (2 Channel, 2 x 160W)

RCF UP2162 Specs

Power Output	2 x 160W RMS
Frequency Response	50 Hz to 18 kHz
Distortion	< 0.3%
Signal / Noise	80 dB
Crosstalk	80 dB
Input Sensitivity	Line: 0 dBu Aux: 0 to -20 dBu
Line Input Impedance	20 kOhms
Auxiliary Input Impedance	20 kOhms
Tones	Bass/Treble: 100 Hz, ±8 dB
Output Impedance	4 ohms
Output Voltage	70 V (31 ohms) / 100 V (62 ohms)
Operating Voltage	115-230 VAC, 50/60 Hz
Power Consumption	2 x 350 W
Controls	Master volume, Treble, Bass, Gain
Protections	Overload, short circuit, thermal
Dimensions	3.4 x 17.4 x 8.6" (88 x 444 x 220 mm)
Weight	15.43 lb (7 kg)
