RCF TTL33 Overview

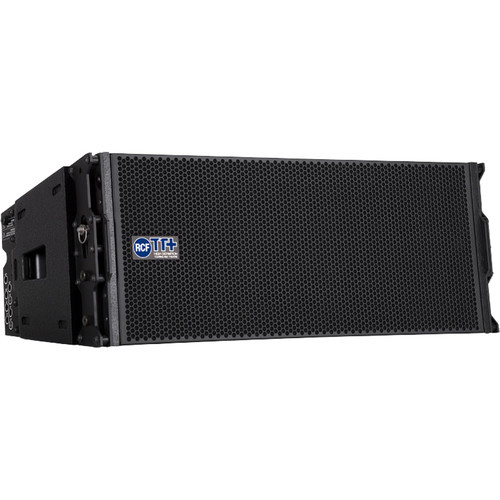

The TTL33-A II Active Three-Way Line Array Module from RCF is a full-range compact wide-dispersion line array. TTL33-A II is a three-way active system featuring a 2 x 8" neodymium woofer with a 64mm voice coil in a band-pass low-frequency configuration, a 1 x 8" neodymium midrange with a 64mm voice coil in horn-loaded configuration, and a 3 x 1" neodymium compression driver with a 37mm titanium dome voice coil in horn-array configuration.
The woofer provides large excursion and is lightweight, the midrange has a high BL for vocal presence, and the compression driver design offers minimum spacing between throats to avoid HF cancellation. The TTL33-A II amplifier has a DSP controlled multiway digital amplification. The cabinet is marine Baltic birch plywood, coated with high-resistance epoxy paint. The mechanical suspension & orientation system is made of high quality steel, and is precise and easy to use. The suspension system is directly connected to the sides of the cabinet.
RCF TTL33 Specs
| Frequency Response | 60 Hz - 20 kHz @ -3 dB |
| Maximum Sound Pressure Level (SPL) | 135 dB |
| Coverage Angle | Horizontal: 100° Vertical: 15° |
| Compression Driver | 3 x 1.0" neodymium, 1.5" (37 mm) voice coil |
| Midrange | 8" neodymium, 2.5" (64 mm) voice coil |
| Woofer | 2 x 8" neodymium, 2.5" (64 mm) voice coil |
| Input / Output Connectors | XLR, RDNet Ethercon |
| Input Sensitivity | -2 dBu / + 4 dBu |
| Crossover Frequencies | 400 Hz / 1800 Hz |
| Protections | Thermal, HF |
| Limiter | RMS, fast limiter |
| Controls | HF correction Cluster size HPF |
| Total Power | 750 W RMS |
| Frequency | High: D/250 W RMS Mid: D/500 W RMS Low: D/500 W RMS |
| Cooling | Convection |
| Material | Baltic birch |
| Hardware | Array side fittings |
| Handles | 2 |
| Dimensions | 11.8 x 29.9 x 17.7" (300 x 760 x 450 mm) |
| Weight | 71.5 lb (32.5 kg) |
