Description

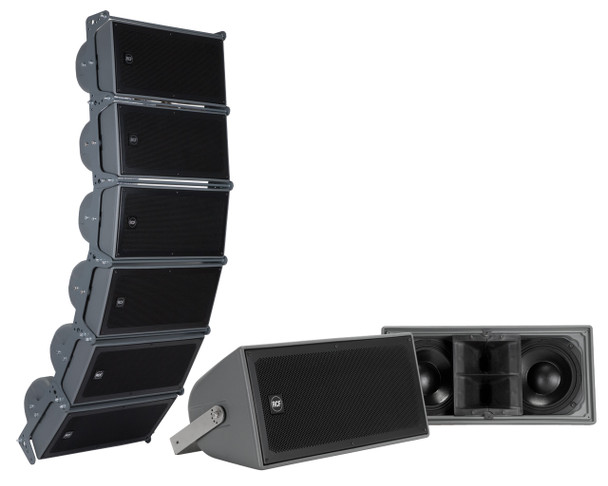

The P5228-L is an IP 55 (International Protection Rating) weatherproof full range, two wayline array speaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor

Applications

.The high frequency section includes two constant directivity CMD horn, each loaded with a 1" RCF?ÿPrecision neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20?ø vertical coverage. The low frequency transducers are two 8" woofers with a 2.5" voice coil.The cabinet is a single piece rotational moulded enclosure, made in medium density polyethylene, fully UV protected equipped with 4 x M8 brass inserts and a stainless steel U-Bracket.Connections to the amplifier are made through a watertight multi-pole connector. The grille is in custom perforated aluminium with open-cell fibers and water repellent woven fabric backing.

Applications

? Outdoor sound reinforcement in medium-large spaces
? High level AV playback
? Flown cluster configurations
? Large speech systems
? Music sound reinforcement

Part Number

? 13000202

Features

500 W RMS
Weatherproof cabinet IP55
Aluminium grill and stainless steel bracket
Two 8" high-output LF transducers with 2.5" voice coil
One RCF Precision neodymium 1" compression driver with 1.75" diaphragm assembly
90?ø x 20?ø constant directivity horn
2?ø x 15?ø enclosure sides for array configurations
Active Mosfet Compression Driver Protection
LICC (Low Impedance Compensated Crossover) network
Input connector 4 pole Amphenol IP67

Acoustical Specifications

Frequency Response -10 dB:80 Hz \xf7 20000 Hz
Max SPL @ 1m:131 dB
Horizontal coverage angle:90\xb0
Vertical coverage angle:20\xb0
Directivity index; Q:11
System Sensitivity:98 dB
Nominal Impedance:8 \u03a9
Power Handling:500 W
Peak Power Handling:2000 W
Recommended Amplifier:1000 W
Protections:Dynamic
Crossover frequencies:1300 Hz

Transducers

Compression Driver:2 x 1" neo throath, 1.75" coil diaphragm assembly
Nominal Impedance:16 \u03a9
Input Power Rating:50 W AES
Sensitivity:109 dB
Woofer:2 x 8" neo woofer with 2.5" coil
Nominal Impedance:16 \u03a9
Input Power Rating:300 W AES
Sensitivity:95 dB

Input Section

Input connector:4 pole Amphenol

Cabinet

Cabinet Material:8 mm Polyethylene rotomoulded
Hardware:4 x M8 inserts +
Grille:Custm perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
Colour:Grey

Physical Specifications

Height:566/22.8 mm/inch
Width:268/10.55 mm/inch
Depth:250/16.23 mm/inch
Net Weight:14/30.8 kg/lbs
