Description

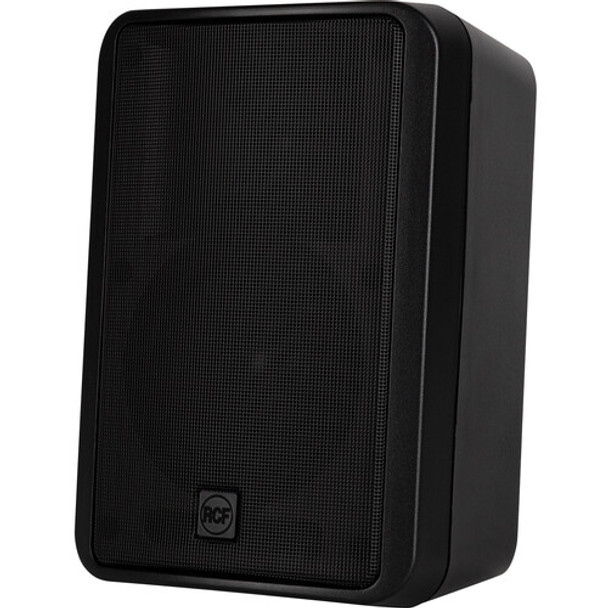

Professional audio/video installers in search of a compact speaker with 70/100V compatibility, uncompromised audio performance, and high reliability will be pleased with the black RCF MR 50T, a passive, 2-way speaker that sounds great and installs easily. It's well suited for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, or audio monitoring facilities.

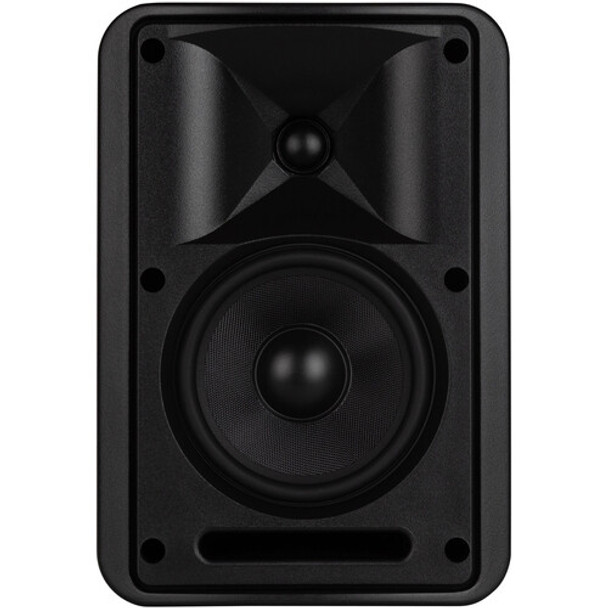

RCF recommends a 120W amplifier to power the 5" woofer and 1" neodymium dome tweeter, which combine for a 60 Hz to 20 kHz frequency response and a maximum SPL of 110 dB. The speaker offers a 110x100° coverage angle and features RCF's Low Inductance Compensated Crossover (LICC) to assure exceptional audio performance and long-term reliability. The self-extinguishing plastic cabinet includes M6 inserts for using the optional U-bracket. A swivel wall mount accessory is included.
Constant-Voltage Speakers
- Constant-voltage speaker systems, also called high impedance or 70/100V audio distribution systems, refer to networks of loudspeakers equipped with line transformers connected to an audio amplifier with high-impedance output.
- High voltage (70 or 100V) enables long cable runs between amp and speakers with reduced power loss: low-level current allows smaller cable diameters.
- Speakers can be wired in parallel in large number, limited only by available amplifier power.
- Different speaker types with different power requirements can share the same speaker line simultaneously making the system-wiring easy.
- Adding or removing a speaker is very quick and simple, it does not require to re-wire the overall circuit.
Versatile Sound
- Elegant and discreet design, combined with an excellent audio performance, represent the RCF sound. MR speakers are ideal both for speech and music reproduction in any business and A/V application and deliver deep bass, smooth midrange, and finely detailed high-frequency response.
Smooth Installation
- Housed in self-extinguishing plastic, the MR series delivers uncompromising audio performance and reliability in fixed installations where the speakers would blend into any environment. MR speakers are easy to install, with included and optional accessories to increase installation flexibility for wall mounting.
Uncompromised Performance
- Quality components and careful acoustic design make the MR series a great choice for applications such as speech and music reproduction in all A/V applications. Designed for easy installation into bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, or audio monitoring facilities.
- The MR 40's 1” voice coil woofers and 0.8” voice coil dome tweeters, combined with RCF Low Inductance Compensated Crossover (LICC) to ensure exceptional audio performance and long-term reliability.
RCF MR50 Specs
| Configuration | Passive 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 60 W RMS 240 W Peak |
| Constant Voltage / Transformer Taps | 100 V: 40 / 20 / 10 / 5 W or 8 Ohms Bypass 70 V: 40 / 20 / 10 / 5 / 2.5 W or 8 Ohms Bypass |
| System Impedance | 8 Ohms |
| HF Driver | 1" / 25.4 mm Tweeter |
| HF Voice Coil | 0.8" / 20.3 mm |
| MF Driver | None |
| LF Driver | 5" / 127 mm Woofer |
| LF Voice Coil | 1" / 25.4 mm |
| Magnet | Neodymium |
| Frequency Response | 60 Hz to 20 kHz -10 dB |
| Maximum SPL | 110 dB |
| Coverage Angle | 110° H x 100° V |
| Directivity | 7 (Directivity Index) |
| Speaker Sensitivity | 87 dB |
| Protections | Overcurrent, Ultrasonic |
| Audio I/O | 2 x Euroblock 4-Pole Speaker Input/Output |
| Crossover | 3 kHz |
| Phase Adjustment | None |
| Mounting | 4 x M6 Bracket Point |
| Handles | None |
| Construction Material | Metal, Plastic |
| Dimensions | 10.6 x 7.4 x 6.6" / 270 x 187 x 167 mm |
| Weight | 8.8 lb / 4 kg |
