RCF

RCF HDL6-A Active Compact 2-way Lina Array (Blk)

Write a Review
$1,699.00
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
RCF HDL6-A  Active Compact 2-way Lina Array (Blk)
SKU:
HDL6-A
UPC:
8024530014483
MPN:
8024530014483
Width:
0.10 (in)
Height:
0.10 (in)
Depth:
0.10 (in)
Shipping:
Free Shipping
Current Stock:

With every purchase of $75 or more, use promo code "HOL24" at checkout to receive a free pair of Technical Pro HPS820 Professional Headphones.

Description

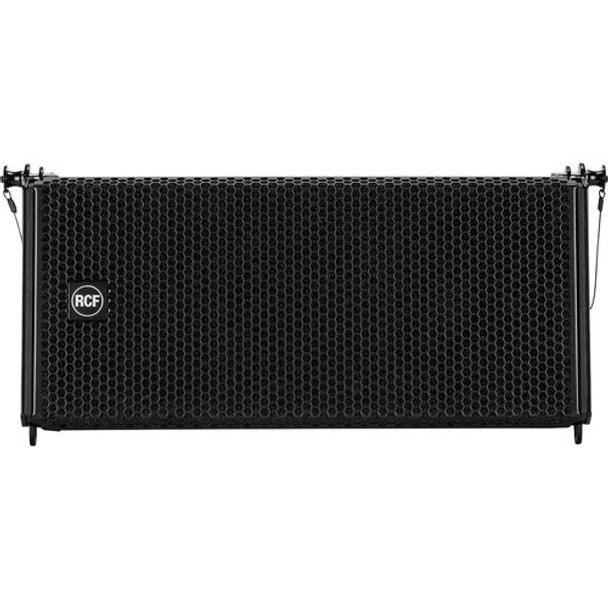

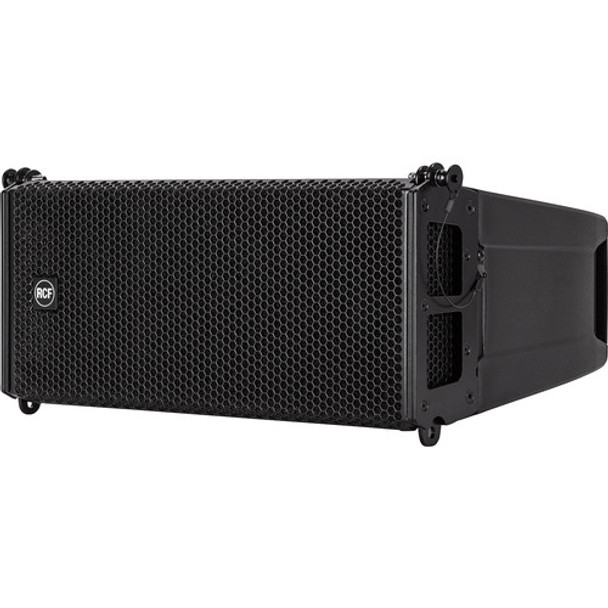

The black HDL 6-A Active Line Array Module from RCF is a 2-way active line array module designed for live sound reinforcement and installed sound applications. Powered by a 1400W 2-channel class-D amplifier, it features two 6" neodymium woofers for a solid bass reproduction and a 1.7" voice coil compression driver mounted on a precise 100 x 10° waveguide. The powerful DSP processes the sound including crossover, phase correction, limiting, and protection. The system accept female XLR input connectors and line-level signals from a mixing console or other signal source. The output XLR male connector provides a loop-trough for speaker's daisy chaining. The volume knob controls the volume of the power amplifier. The control ranges from maximum attenuation to the maximum level (maximum output).

Equipped with two aluminum rear handles for portability
Features RCF transducers
Integrated mechanics are both fast and reconfigurable, allowing the system engineer to create J-shaped or spiral arrays
Wooden reinforced composite polypropylene enclosure
Integrated processing and cabling reduction
Digital amplifier with switch mode power supply and DSP controlled input section with selectable presets
Powered by a 1400W peak power digital amplifier, split 400W for the HF, and 1000W for the LF
HF projection is adjusted by the button on the rear of the cabinets
2.0" inside-outside voice coil
Water-resistant fiber doped cone
Polycotton M-roll surround
High-power magnetic structure
Inside/outside coil doubles the dissipation surface
Adhesion area to the former is doubled
ND 340 high-power compression driver
1.7" voice coil with a crossover point of 900 Hz
Coverage and dispersion control
Edge wound voice coils
Linear frequency response and maximum SPL output


RCF HDL6-A Specs

Acoustic Specifications
Frequency Response (-3 dB) 65 Hz to 20 kHz
Maximum SPL 131 dB
Horizontal Coverage Angle 100°
Vertical Coverage Angle 10° maximum
Compression Driver 1.0" (2.5 cm) neo, 1.7" (4.3 cm) voice coil
Woofer 2 x 6" (15.2 cm) neo, 2.0" (5.1 cm) voice coil
Input
Input Connectors XLR male
Output Connectors XLR female
Input Sensitivity +4 dBu
Power Indicators Power cord is connected and the power switch is turned on this indicator lights green
Signal Indicator Signal indicator lights green if there is signal present on the main XLR input
Limiter Built-in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers
Processor
Crossover Frequencies 900 Hz
Protection Thermal, RMS
Limiter Soft limiter
Controls HF correction
Amplifier
Peak Power Total: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W
RMS Power Total: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W
Cooling Convection

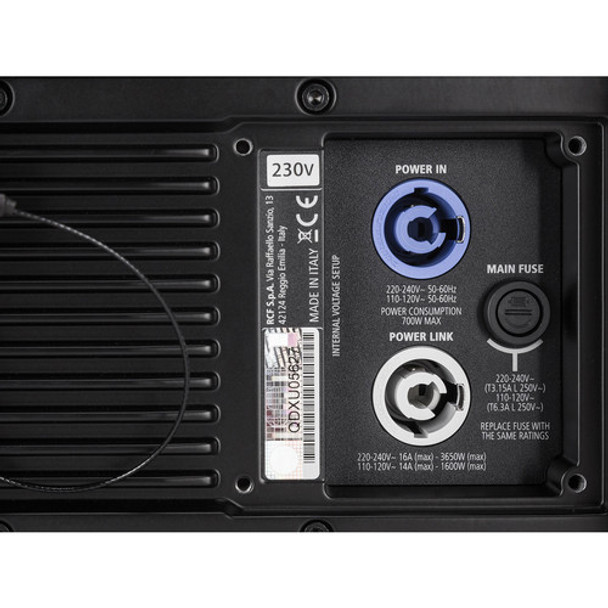

Connection VDE connector in
Physical
Hardware Array fittings
Cabinet Composite PP
Handles 2 back
Dimensions 9.3 x 18.5 x 15" (23.7 x 47 x 37.7 cm)
Weight 25.4 lb (11.5 kg)
