Description
RCF HD3216-T Overview

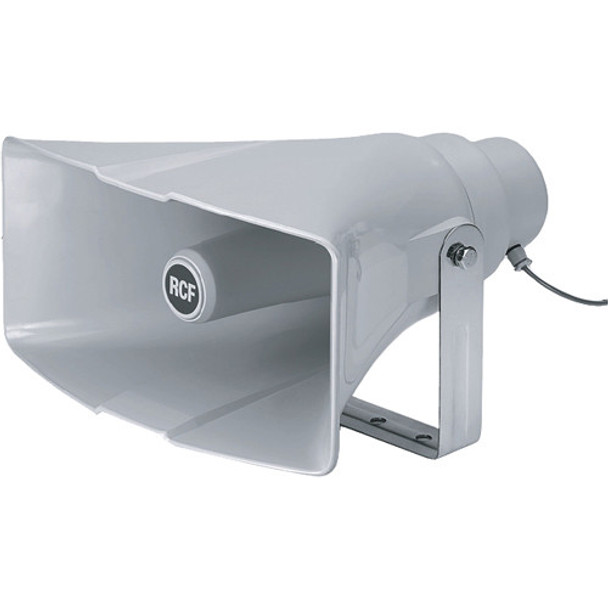

The HD 3216/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delivered power by means of a rotary dial on the rear cover.
Key Features
- Built-in line transformer with multitap power selector on rear cover
- Hi-pass filter for protecting driver against out-of-range low-freq
- IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
- UV-stabilized auto extinguishing UL-HB ABS plastic
- Stainless-Steel mounting hardware
RCF HD3216-T Specs
| Product Type | Speaker - for PA system |
| Protection | UV radiation resistant |
| Enclosure Color | Light gray, RAL 7035 |
| Enclosure Material | ABS plastic |
| Speaker Type | Passive |
| Nominal Output Power | 25 Watt |
| Max (RMS) Output Power | 38 Watt |
| Frequency Response | 250 - 10000 Hz |
| Nominal Impedance | 8 Ohm |
| Max Output Level (Max SPL) | 122 dB |
| Sensitivity | 108 dB |
| Integrated Transformer | 70V/100V operation |
| Coverage | 130° x 60° |
| Recommended Placing | Indoor / outdoor, surface mountable |
| Driver Details | Speaker: full-range driver - Horn |
| Included Accessories | U-type mounting bracket |
| Compliant Standards | UL 94 HB, IP66 |
| Width | 12.2 in |
| Depth | 12.6 in |
| Height | 6.5 in |
| Weight | 5.22 lbs |
