RCF DP-5EN Overview

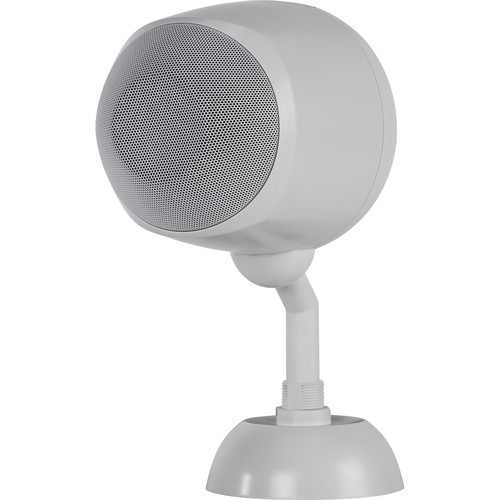

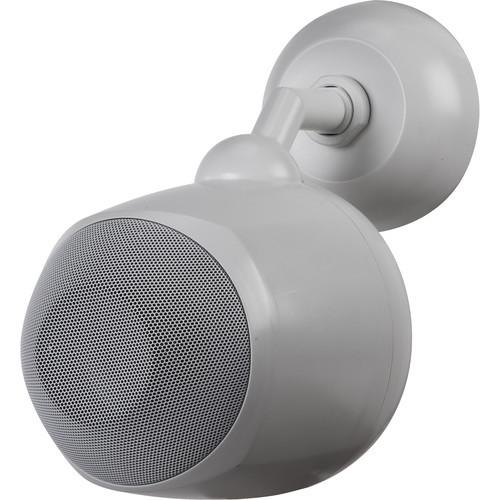

DP 5EN is a 20 W weatherproof sound projector in compliance with EN 54-24 regulations. It is suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required; moreover, thanks to its IP 65 protection grade, it can be installed both indoor and outdoor. A modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.
Key Features
- 5'' full range speaker for alarm voice messages broadcasting and high quality background music
- ABS cabinet with steel mesh grille
- It can be installed both indoors and outdoors (IP 65 protection grade)
- Equipped with transformer for 100 V (/ 70 V) constant voltage lines
- Internal power setting
- Ceramic screw terminal for connection
- Internal thermal fuse
RCF DP-5EN Specs
| Product Type | Sound projector - for PA system |
| Protection | Weatherproof |
| Enclosure Color | White |
| Enclosure Material | ABS plastic |
| Speaker Type | Passive |
| Nominal Output Power | 20 Watt |
| Max (RMS) Output Power | 30 Watt |
| Frequency Response | 80 - 20000 Hz |
| Max Output Level (Max SPL) | 101 dB |
| Sensitivity | 88 dB |
| Integrated Transformer | 70V/100V operation |
| Coverage | 160° x 160° |
| Recommended Placing | Indoor / outdoor |
| Driver Details | Speaker: full-range driver - 5" |
| Compliant Standards | IP65, EN 54-24 |
| Width | 7.1 in |
| Depth | 10.2 in |
| Height | 7.1 in |
| Weight | 5.75 lbs |
