Description

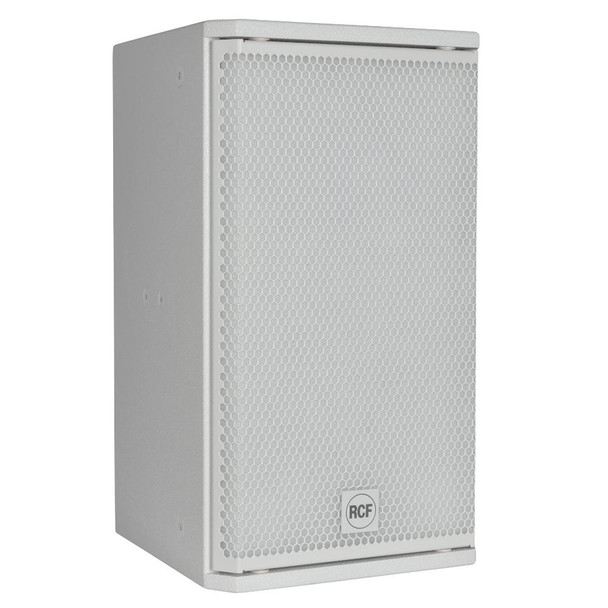

Give your customers, patrons, and employees the sound they deserve with the RCF COMPACT M 10, a full-range passive speaker suitable for a wide range of installed applications. With its speaker construction, frequency range, and wide range of directivity, these monitors provide a professional, hi-fi sound in a customer-facing environment.

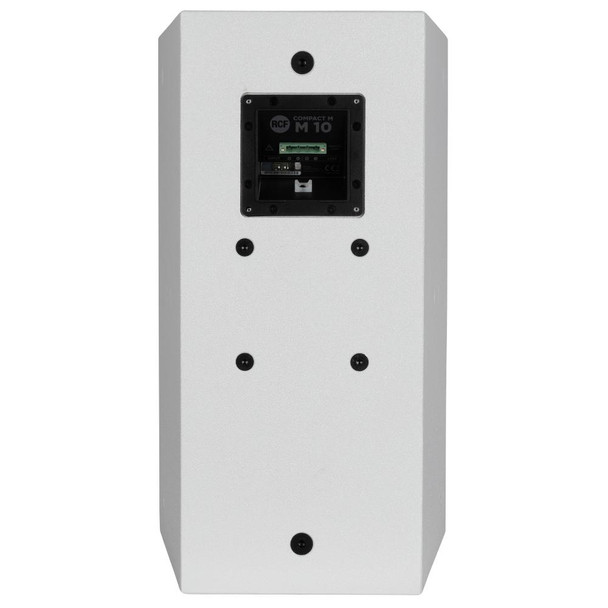

This speaker can produce a low-distortion response at high levels, or a nuanced performance at low levels, making it suitable for background music and foreground sound applications. The speaker's elegant and compact design makes it suitable for almost any installation-based scenario, especially since the mounting options are plentiful, with mounting points found on the top, bottom, and rear of the speaker.
Great Sound for Your Atmosphere
Take up Space in the Brain, Not the Room
Improve Customer Experience
Smooth Installation
RCF COMPACT M 10 Specs
| Configuration | Passive 2-Way |
| Total Power Capacity | Passive: 300 W RMS Passive: 1200 W Peak |
| System Impedance | 8 Ohms |
| HF Driver | 1 x 1" / 25.4 mm Compression Driver |
| HF Voice Coil | 1.4" / 35.6 mm |
| MF Driver | None |
| LF Driver | 1 x 10" / 254 mm Woofer |
| LF Voice Coil | 2.5" / 63.5 mm |
| Frequency Range | 60 Hz to 20 kHz -10 dB |
| Maximum SPL | 128 dB SPL (Peak) |
| Coverage Angle | 90° H x 70° V |
| Directivity | 9 (Directivity/Q Factor) |
| Speaker Sensitivity | Passive: 98 dB HF: 107 dB LF: 98 dB |
| Audio I/O | 1 x Euroblock 4-Pin Input 1 x Euroblock 4-Pin Link Output |
| Crossover | 1.8 kHz |
| Phase Adjustment | None |
| Mounting | 8 x M8 8 x M10 |
| Handles | None |
| Construction Material | Plywood, Steel |
| Dimensions | 20.1 to 11.6 x 12.8" / 510 to 295 x 325 mm |
| Weight | 37.5 lb / 17 kg |
