- Up to 130 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- 50-20000 Hz linear frequency response
- 1.75" Compression Driver
- 12" Woofer
- FiRPHASE zero degrees phase technology
- Bass Motion Control woofer excursion management

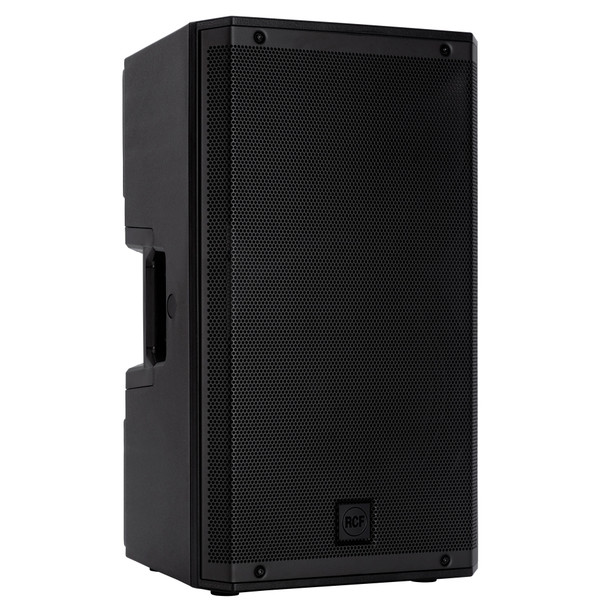

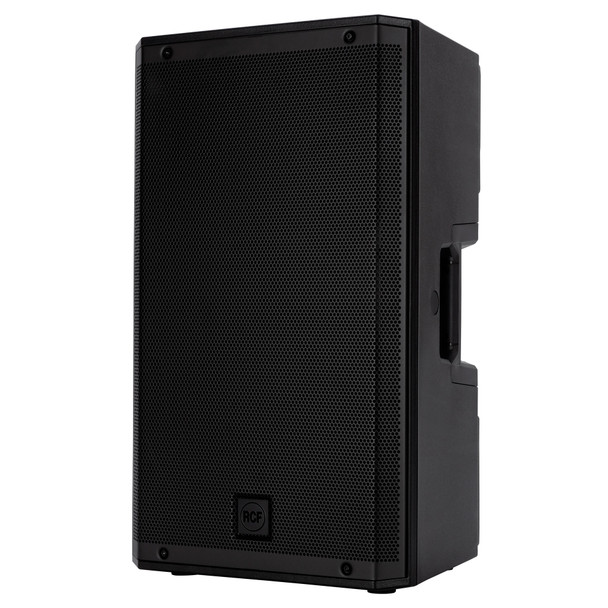

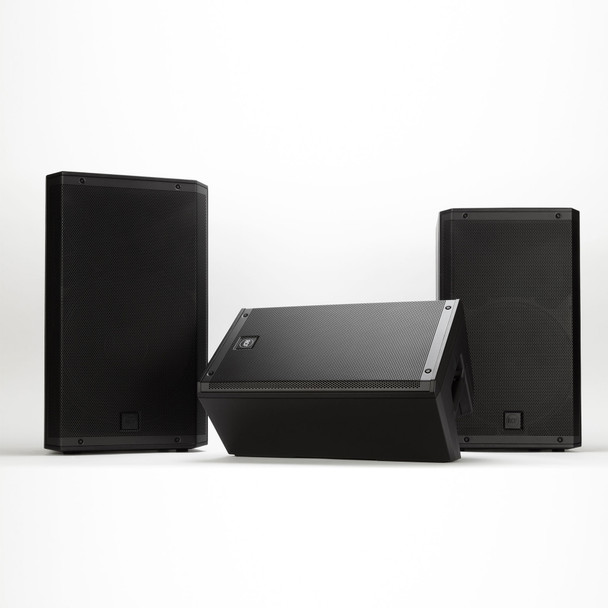

ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 912-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
60°
COMPRESSION DRIVER:
1 x 1.0'', 1.75'' v.c
INPUT CONNECTORS:
XLR, Jack
INPUT SENSITIVITY:
-2 dBu/+4 dBu
CROSSOVER FREQUENCIES:
1800 Hz
PROTECTIONS:
Thermal, RMS
CONTROLS:
Linear, Boost, Stage, Volume
HIGH FREQUENCIES:
700 W Peak
LOW FREQUENCIES:
1400 W Peak
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:
1 x M10 Top, 1 x M10 each side
HANDLES:
1 Top , 1 each side
HEIGHT:
642 mm / 25.28 inches
WIDTH:
370 mm / 14.57 inches
DEPTH:
363 mm / 14.29 inches
WEIGHT:
19 kg / 41.89 lbs
PACKAGE HEIGHT:
685 mm / 26.97 inches
PACKAGE WIDTH:
430 mm / 16.93 inches
PACKAGE DEPTH:
423 mm / 16.65 inches
PACKAGE WEIGHT:
21.2 kg / 46.74 lbs
