Description

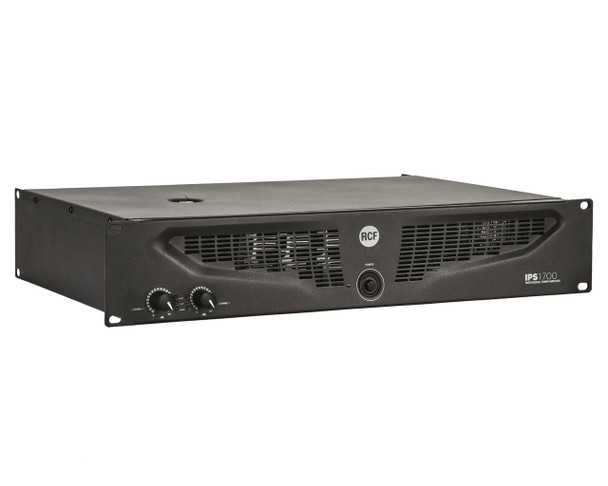

IPS Series is a range of two-way professional amplifiers that combines high quality performance and reliability with the latest power amplifications technologies.This high value power-to-cost designs offer, in compact lightweight 2 rack unit space, the sound quality and the durability of traditional class AB and class H designs with the innovation of the latest power devices available.IPS 700 is a 2 channel power amplifier that delivers up to 2 x 300 W RMS @ 4 ?? (600 W RMS bridged @ 8 ??), weighing just 10,1 kg.It features independent gain dials, signal ƒ?? clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono ƒ?? stereo ƒ?? bridge switch, powercon outputs.Moreover, it is protected against shorts and open circuits.Thanks to its high efficiency heat sinks and high speed DC fans, the IPS 700 can withstand the hardest heat conditions ensuring great reliability.
Applications
- ƒ?› Small and medium sized PA systems
- ƒ?› Club sound
- ƒ?› DJs
- ƒ?› Performance and sport venues
- ƒ?› worship systems
- ƒ?› public spaces
- ƒ?› cinema
- ƒ?› 12135087 (230V)
- ƒ?› 12135086 (115V)
Features
- 2 unit 19" rack, easy transportation
- Fast response and low distortion
- Easy to configure in stereo / mono / bridge modes
- Extensive protective circuits ensure high reliability and operating safety.
- Front panel signal / clip / protect LED indicators
- XLR input connectors
- SPEAKON NL4 output connectors
- Power output stereo 4\u03a9:300 W rms
- Power output stereo 8\u03a9:150 W rms
- Power output bridged 8\u03a9:600 W rms
- Frequency Response -3 dB:20 Hz \xf7 20 kHz
- Signal/noise rate:100 dB
- Crosstalk:-75 dB
- Damping factor:> 200
- Slew rate:10V/\u03bcS
- Input connector:xlr
- Input sensitivity:1.4 V (/ 32 \u2013 26 dB) dBm/V RMS
- Input impedance:20 k\u03a9 (balanced), 10 k\u03a9 (unbalanced) k\u03a9
- Output connector:Speakon
- Cooling:Forced
- Protections:DC, internal fault, input overload, RF interference, unmatched load, output short-circuit, thermal drift, power supply over-current
- Amplifier class:AB
- Operating voltage:115 \xf7 240 V (50 / 60 Hz) V ~ Hz
- Power consumption:350 W
- Height:88/3.4 mm/inch
- Width:482/18.9 mm/inch
- Depth:255/10 mm/inch
- Net Weight:9.5/20.9 kg/lbs
