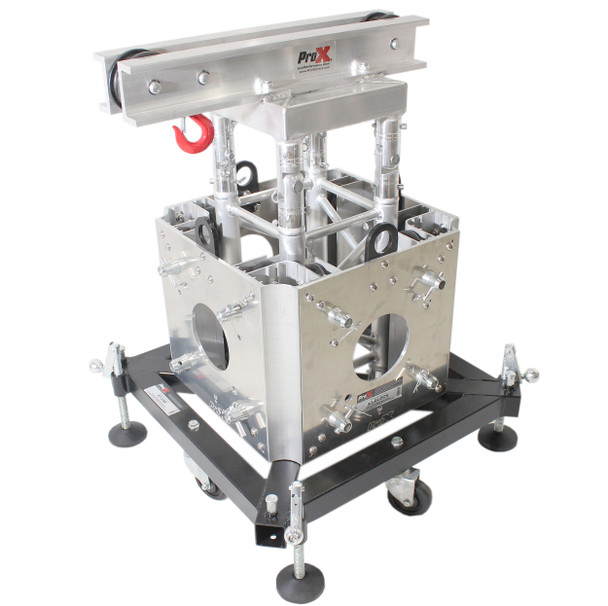

ProX XTP-GSBPACK164 Truss Tower Stage Roofing System Package -Top Block | Hinges | Base | Outriggers and 1.64 Ft. 2 mm Wall Truss Segment
The ProX XTP-GSBPACK164 is a Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 1.64' long square Truss. Complete with the Rigging Top. In this package, you have everything you need (except for lift hoist) for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. You get:
- XT-GSB MK2 Rigger Base, with extending legs
- XT-SQ164 1.64 ft Long Truss segment (Longer segments available separately)

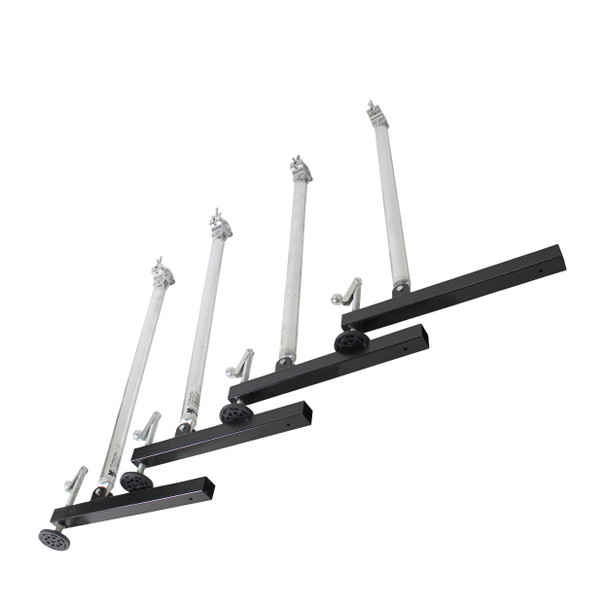

- XT-GSOUT3 3' Outrigger Brace Tubes (4) with clamps

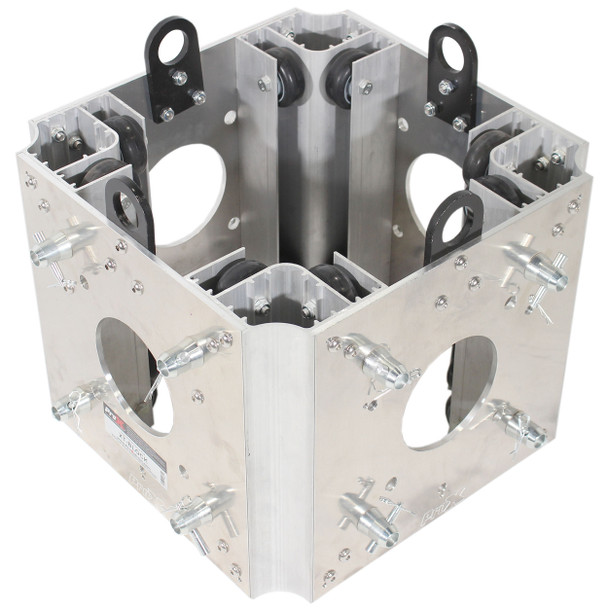

- XT-BLOCK Sleeve Block 4-Way Junction box
- XT-TOPCM Truss Top with I-Beam mount with chain Pulley wheels
- XT-HINGE 4 Hinge block set
- (Lift Hoist NOT included)
ProX Trussing is a rugged and durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas and make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs
ProX XT-SQF34 2MM SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb/9,5kg per 3.28 ft / 1 meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
IMPORTANT: Always know your load weight for your equipment: XT-SQ Truss Loading Chart
Features
- Manufactured to Exacting Specifications in our Own Factory!
- Tolerance Free Standard Conical Connectors
- Truss Main Tube Wall Thickness of .08in / 2mm
- Load Capacity is 1 Ton (2000 lbs) per unit
- Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
- TUV Certified Aluminium/Steel Welding
TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.
Package Contents
- XT-TOPCM (1) Top Truss Section for Electric Motor or Manual Chain Hoist
- XT-BLOCK-MK2 (1) Ground Support Sleeve Block for F34 Truss Systems
- XT-SQ164 (1) 1.64 Ft - 0.5 M F34 Square Truss Segment | 2 mm Wall
- XT-GSB MK3 (1) Universal Truss Ground Support on Wheels with Leveling Jacks for F34 and F44
- XT-GSOUTS2 (4) 2 Ft. Outrigger Brace for Ground Support Truss Tower
- XT-HINGE (4) F31|F32|F34 Conical Single Tube Hinge Unit Truss roof system
To Fit
Standard F34 Square Truss Configurations - Fits most other manufacturers truss with conical connectors
Exterior Dimensions & Weight
XT-GSOUTS3 (4): 64.00"H x 2.00"W x 37.50"L - Weight: 29.00 lbs
XT-SQ164 (1): 19.68"H x 11.42"W x 11.42"L - Weight: 13.00 lbs
XT-BLOCK-MK2 (1): 18.50"H x 22.50"W x 22.50"L - Weight: 77.30 lbs
XT-TOPCM (1): 11.50"H x 9.50"W x 24.00"L - Weight: 26.40 lbs
Shipping Dimensions & Weight
Box 1 of 6: XT-HINGE (4 boxes) 2.00"H x 5.00"W x 5.00"L - Shipping Weight: 2.50 lbs
Box 2 of 6: XT-GSOUTS3 (4 boxes) 6.00"H x 8.00"W x 64.00"L - Shipping Weight: 34.00 lbs
Box 3 of 6: XT-GSB MK3 9.00"H x 29.00"W x 29.00"L - Shipping Weight: 70.00 lbs
Box 4 of 6: XT-SQ164 22.00"H x 14.00"W x 14.00"L - Shipping Weight: 15.00 lbs
Box 5 of 6: XT-BLOCK-MK2 20.00"H x 24.00"W x 24.00"L - Shipping Weight: 80.00 lbs
Box 6 of 6: XT-TOPCM 12.00"H x 10.00"W x 25.00"L - Shipping Weight: 28.00 lbs
