Description

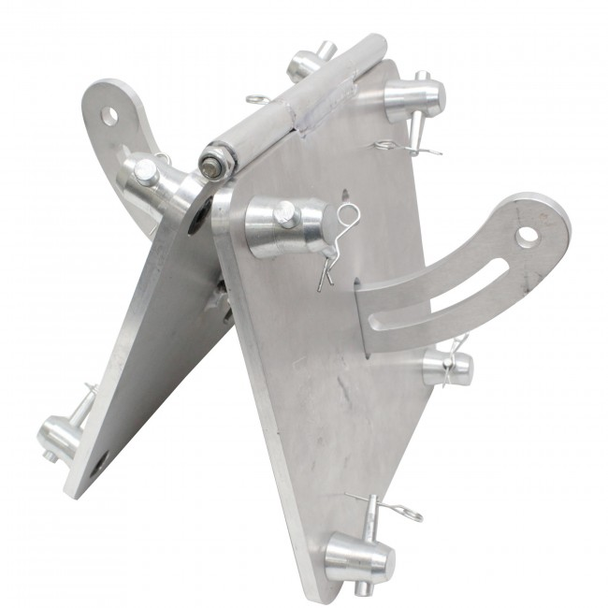

ProX XT-BOOKHINGE Adjustable Book-Hinge Connection 0° to 180° for F34 Conical Truss
The ProX XT-BOOKHINGE Adjustable Book-Hinge Truss Connection from the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. It adjusts from 0° to 180° and fits ProX 12" SQ F34 Conical trussing. Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup! This product can provide a universal solution for truss angles.
The ProX XT-BOOKHINGE is the first trussing hinge from ProX that adjusts from 0° to 180° for unique truss construction projects. There is a built-in adjustable arm to lock the desired angle between sections of truss for unique builds. The superior construction quality of ProX trussing products guarantees many years of trouble-free use.
At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of trussing of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
- Tolerance Free Standard Conical Connector
- Main tube wall thickness of .08in
Connecting hardware included - Conical connectors, spigots, cotter pins (8 sets)
ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
Features
- Manufactured in our Own Factory!
- Allows angles not possible with standard trussing corners
- Adjustable lock arm
- Conical couplers included
- Material: 10mm EN-AWT6 6061 Aluminum
- TUV Certified Aluminium Welding
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
To Fit
Both ProX 12" SQ F34 Conical trussing and other major trussing manufacturers F34 products.
Weight: 19.00 lbs
Shipping Dimensions
13.00"L x 14.00"D x 14.00"H
Shipping Weight: 20.00 lbs
