Description

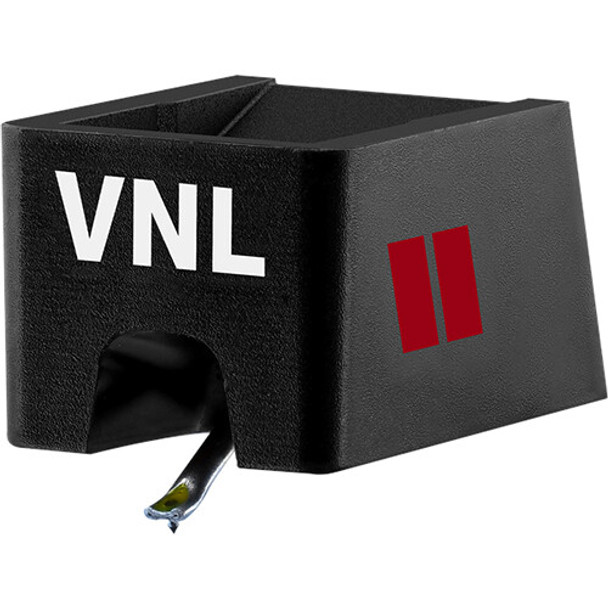

Ortofon VNL II STYLUS Overview
Engineered with extra resistance to scratching and backspinning, the Ortofon VNL II Moving Magnet Cartridge is designed specifically to fit the needs of DJs, turntablists, and portablists. The VNL II Rigid helps you achieve the optimal feel for your particular style.
The VNL offers high-performance tracking that's not only well suited to both DVS and vinyl, but also up to the demanding needs of portable turntable enthusiasts who regularly play in unusual locations—where isolating the decks from vibrations can be almost impossible. Record wear during back-cueing and scratching is kept to a minimum by the sturdy spherical design.
Features at a Glance
- Extra resistance to hardcore scratching and backspinning
- High tracking performance for both DVS usage and real vinyl
- Optimal balance of output and of sound quality
- Ultrasonic welding of the components ensures high rigidity and freedom from resonances
- Robotic assembly of stylus assembly offers high precision and uniformity of industrial production
- Designed to provide easy mounting and alignment on a variety of headshells
Stylus
- VNL II compliance, dynamic lateral 15 μm/m N - Rigid
Ortofon VNL II STYLUS Specs
| Stylus Type | Spherical |
| Tracking Force | 4 g |
| Output Voltage | 6 mV |
| Frequency Range | 20 Hz to 20 kHz |
| Channel Separation @ 1 kHz | 20 dB |
| Anti-Skating Adjustment | For Best Back-Cueing Performance, Use 0 |
| Internal Impedance | DC Resistance: 750 Ohms |
| Internal Inductance | 450 mH |
| Recommended Load | Resistance: 47 Kilohms |
| Recommended Load Capacitance | 200 to 600 pF |
| Cartridge Weight | 0.23 oz / 6.5 g |
| Replacement Stylus | VNL I, VNL II, or VNL III |
| Tracking Ability | At 315 Hz at Recommended Tracking Force: 90 μm |
| Dynamic Compliance | Lateral Dynamic: 15 μm/m N |
