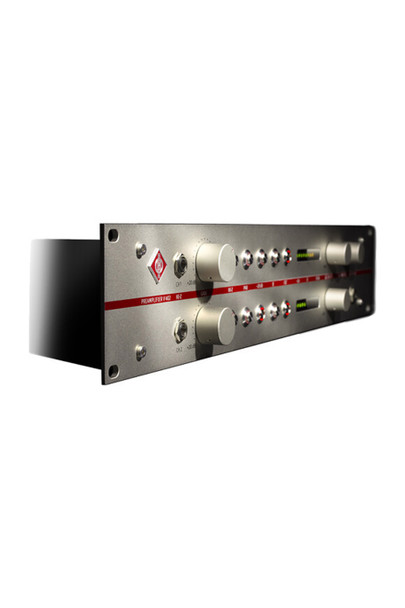

Neumann V 402 Rackmount 2-Channel Microphone Preamplifier
Handmade and sonically pristine, the Neumann V 402 is a rackmount 2-channel microphone, instrument, or line preamplifier, painstakingly designed to deliver the true sound of your source at any gain setting. Its tranformerless circuitry ensures detailed sound without coloration, and its onboard studio-grade headphone amp enables convenient monitoring of your live inputs.
With up to 60 dB of gain, switchable -20 dB pads, and 60 Hz high-pass filters, you can easily dial in and optimize your signal while avoiding distortion and degradation. Front-panel DI inputs make the V 402 equally ideal for Hi-Z instruments such as electric guitar and bass, as well as dynamic and condenser microphones.
Each channel also provides selectable 48V phantom power, switchable polarity, and a multi-segment meter. Separate volume controls allow you to adjust the balance for the monitoring mix, which feeds the front-panel 1/4" headphone output.
- Ultraclean transformerless design with up to 60 dB of gain
- Switchable -20 dB pad for handling high-level sources up to 28 dBu without distortion
- 60 Hz low-cut filter removes pops and rumble without signal degradation

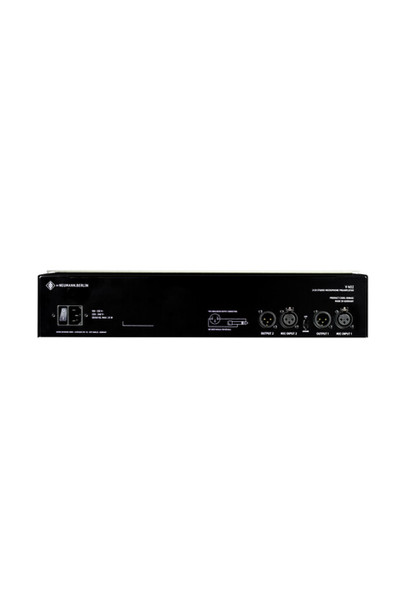

- Balanced XLR inputs and outputs
- Two studio-quality 1/4" instrument inputs with very high impedance
- Clean studio-grade headphone amplifier (mono/stereo switchable)
- Per-channel volume control for easy monitoring mix
- Rear-panel ground-lift switch
- Occupies 2 RU of rack space
- Handmade in Germany
Neumann V 402 Specs
Number of Channels: 2
Inputs:
- 2 x XLR 3-Pin Female Balanced Mic Inputs
- 2 x 1/4" TS Female Unbalanced Hi-Z Inputs
Outputs:
- 2 x XLR 3-Pin Male Balanced Line Outputs
- 1 x 1/4" TRS Female Unbalanced Headphone Output (Mono/Stereo Switchable)
Pad: -20 dB
Low-Cut Filter: 12 dB/Octave at 60 Hz
Phantom Power: 48 VDC, ≥10 mA (Selectable per Channel)
Frequency Range: <10 Hz to >100 kHz (-3 dB at 40 dB Gain)
Gain Range:
- Mic Input: +20 to +60 dB (Pad Off)
- Hi-Z Input: 0 to +40 dB (Pad Off)
Maximum Input Level:
- Mic Input (Pad Off): +8 dBu
- Mic Input (Pad On): +28 dBu
- Hi-Z Input: +21 dBu
Maximum Output Level:
- Main Output: +26 dBu into 1-Kilohm Load Impedance
- Headphone Output: +20 dBu into 150-Ohm Load Impedance
Input Impedance:
- Mic Input: Approximately 3 Kilohms
- Hi-Z Input: 3.3 Megohms
Output Impedance:
- Main Output: Approximately 200 Ohms
- Headphone Output: Approximately 2 Ohms
Metering: -24 to +24 dBu in 6 dB steps
Peak Indication at +24 dBu (Hold Time Approximately 3 Seconds)
Ground Lift: Switchable
Power Requirements: 100 to 120 VAC and 220 to 240 VAC, 50/60 Hz
Power Consumption: 25 W Maximum
Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -13 to 158°F / -25 to 70°C
Operating Humidity: <75% Relative Humidity at 104°F / 40°C (Noncondensing)
Storage Humidity: <95% Relative Humidity (Noncondensing)
Altitude (Operating): Up to 6562 ft / 2 km
Dimensions: 19.0 x 3.5 x 9.5" / 48.3 x 8.9 x 24.2 cm
Weight: 13.6 lb / 6.2 kg
