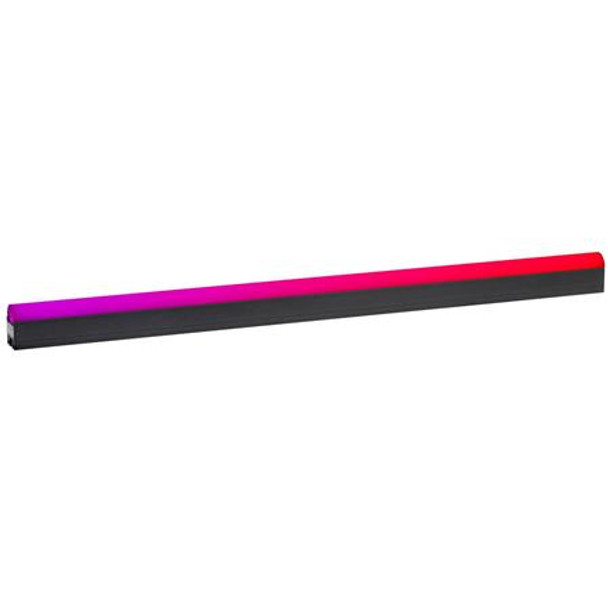

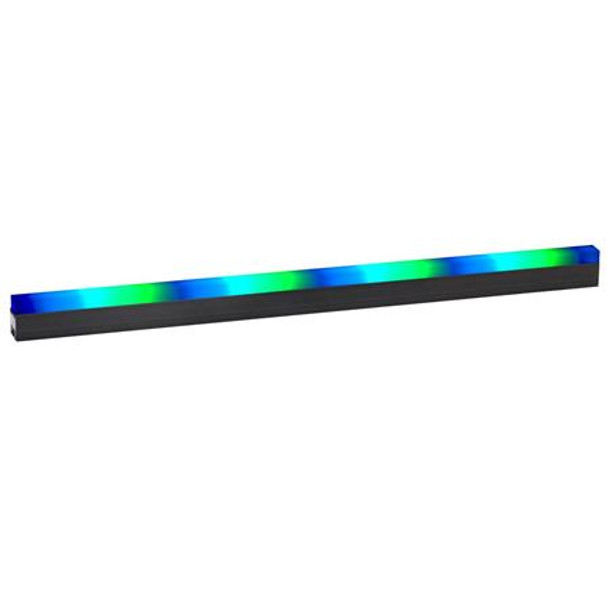

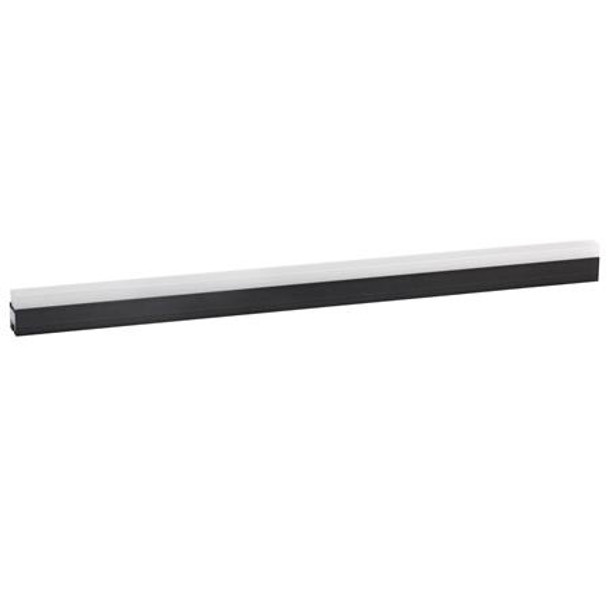

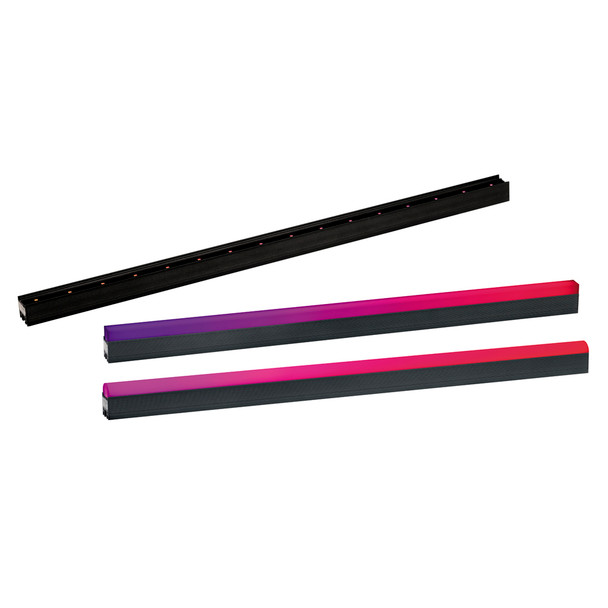

Martin VDO Sceptron 40 1000mm in cardboard

The VDO Sceptron 40 is a linear outdoor-rated LED video fixture for the rental market with 40 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks. The VDO Sceptron 40 is driven by the Martin P3 System Controller family for easy configuration, mapping and setup, and is also backwards compatible with DMX for smaller setups. The integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, while the power supply can be located backstage (up to 50 m away) for a clean setup avoiding messy cabling and several driver boxes.

Extensive range of field-exchangeable optical accessories for a wide variety of looks
Easy setup, mapping and configuration
Bright and fully calibrated for optimal consistency

Features

40 mm pixel pitch
62 cd per meter calibrated
187 lumen per meter calibrated
High-quality 16-bit per color image processing technology
Pixel-level brightness and color calibration for optimal image quality
P3/DMX controllable (automatic protocol detection)
Intuitive mapping and addressing via P3 System Controller
Combined power/data input (single cable for power and data input)
Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
Available in lengths of 1000 mm and 320 mm

Specifications

Physical Length: Available in 320 mm (12.6 in.) and 1000 mm (39.4 in.) versions Width: 27 mm (1.07 in.)Height: 28 mm (1.10 in.)Weight: 1.2 kg / m (0.81 lbs. per foot)Control and Programming Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMX Control modes: RGB, basic, segment and pixel-level Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color Protocol detection: Automatic Setting and addressing: P3 System Controller or RDM-compliant controller DMX channels: 3/10/13/22/31/82Color and intensity calibration: Pixel-level Firmware update: Via Martin P3™ System Controller DMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Control/User Interface Device status: Multi-color visual indication Device test and reset: Magnetic push button to call up local test patterns and reset device Optics Options:
Open Front
Flat Diffuser
Flat Smoked Diffuser
Round Diffuser
Round Smoked Diffuser
Square Diffuser (supplied as standard with fixture)
Square Smoked Diffuser
Tube Diffuser
Tube Smoked Diffuser
NoBlend Diffuser
Smoked No Blend Diffuser
Asymmetric (Wall-Washing) Lens
All options can be interchanged at any time.
Minimum LED lifetime: 50,000 hours (to >70% luminous output)**Figure obtained under manufacturer’s test conditions. Photometric DataColor resolution: 16 bits per color (48 bits per pixel)Pixels: 25 per meter Pitch (pixel center-to-center): 40.00 mm Luminous intensity, calibrated mode: 62 cd per meter*Viewing angle: 120° x 120°Total output, calibrated mode: 2,083 nits (modules spaced 30 mm center-to-center)*, 187 lumens per meter**Preliminary data, figures are approximate.Video Processing
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
Signal Protocol Martin P3 (via Martin P3™ PowerPort) or DMX Construction Color: Matte black Base: Extruded aluminum profile Protection rating: IP65 RoHS compliant
Installation Mounting: Slot for locking nuts on back of profile (M6) and optional sliding bracket for M12 bolt Mounting options: Flat surface at any angle, pedestal or other suitable support Orientation: Any Connections Power and data input: 6-pin custom (BBD) IP66-rated Power and data thru: 6-pin custom (BBD) IP66-rated Hot plugging compatible Electrical Nominal input voltage: 48 VDC +/- 4%Power supply options: Martin P3™ PowerPort 1500, P3™ PowerPort 1000 IP, Tripix™ Power or generic 48 VDC PSU Total power consumption (at maximum intensity, full white): 8.5 W per meter Thermal Cooling: Convection Maximum ambient temperature (Ta max.): 55° C (131° F)Minimum ambient temperature (Ta min.): -30° C (-22° F)Total heat dissipation (calculated, +/- 10%): 30 BTU/hr per meter Approvals EU safety: EN 60950-1, EN 60950-22, EN 62471EU EMC: EN 55032, EN 55024US safety: UL 60950-1, UL 60950-22US EMC: FCC Part 15 Class A Canadian safety: CSA C22.2 No. 60950-1, No. 60950-22 Canadian EMC: ICES-003 Class A Australia/NZ: RCM Accessories Magnetic Test Tool, set of 10: P/N 91610139 VDO Sceptron™ Difuser Lens Removal Jaws: P/N 91611836 Hardware:
VDO Sceptron™/Fatron™ Sliding Brackets, set of 10: P/N 91610123
VDO Sceptron™ Parallel Couplers, 30/40/50 mm, set of 10: P/N 91610125
VDO Sceptron™ Parallel Couplers, 60/70/80 mm, set of 10: P/N 91610138
VDO Sceptron™ Linear (End-to-End) Couplers, set of 10: P/N 91610124
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
Low Profile VDO Sceptron™/Fatron™ Half Coupler: P/N 91611790
VDO Sceptron™/Fatron™ Spigot Adapter, 28 mm (1.1 in.): P/N 91611791
VDO Sceptron™/Fatron™ Floorstands, set of two: P/N 91611792
VDO Sceptron™ Pivot Coupler: P/N 91611793
Optical:
320 mm modules
VDO Sceptron™ Flat Diffuser, 320 mm: P/N 91610111
VDO Sceptron™ Flat Smoked Diffuser, 320 mm: P/N 91610113
VDO Sceptron™ Round Diffuser, 320 mm: P/N 91610115
VDO Sceptron™ Round Smoked Diffuser, 320 mm: P/N 91610117
VDO Sceptron™ Square Diffuser, 320 mm: P/N 91610119
VDO Sceptron™ Square Smoked Diffuser, 320 mm: P/N 91610121
VDO Sceptron™ Tube Diffuser, 320 mm: P/N 91611630
VDO Sceptron™ Tube Smoked Diffuser, 320 mm: P/N 91611650
VDO Sceptron 10™ NoBlend Diffuser, 320 mm: P/N 91610126
VDO Sceptron 10™ NoBlend Smoked Diffuser, 320 mm: P/N 91610128
VDO Sceptron 20™ NoBlend Diffuser, 320 mm: P/N 91610130
VDO Sceptron 20™ NoBlend Smoked Diffuser, 320 mm: P/N 91610132
VDO Sceptron 40™ NoBlend Diffuser, 320 mm: P/N 91610134
VDO Sceptron 40™ NoBlend Smoked Diffuser, 320 mm: P/N 91610136
VDO Sceptron™ Asymmetric Lens, 320 mm: P/N 91611670
1000 mm modules
VDO Sceptron™ Flat Diffuser, 1000 mm: P/N 91610112
VDO Sceptron™ Flat Smoked Diffuser, 1000 mm: P/N 91610114
VDO Sceptron™ Round Diffuser, 1000 mm: P/N 91610116
VDO Sceptron™ Round Smoked Diffuser, 1000 mm: P/N 91610118
VDO Sceptron™ Square Diffuser, 1000 mm: P/N 91610120
VDO Sceptron™ Square Smoked Diffuser, 1000 mm: P/N 91610122
VDO Sceptron™ Tube Diffuser, 1000 mm: P/N 91611640
VDO Sceptron™ Tube Smoked Diffuser, 1000 mm: P/N 91611660
VDO Sceptron 10™ NoBlend Diffuser, 1000 mm: P/N 91610127
VDO Sceptron 10™ NoBlend Smoked Diffuser, 1000 mm: P/N 91610129
VDO Sceptron 20™ NoBlend Diffuser, 1000 mm: P/N 91610131
VDO Sceptron 20™ NoBlend Smoked Diffuser, 1000 mm: P/N 91610133
VDO Sceptron 40™ NoBlend Diffuser, 1000 mm: P/N 91610135
VDO Sceptron 40™ NoBlend Smoked Diffuser, 1000 mm: P/N 91610137
VDO Sceptron™ Asymmetric Lens, 1000 mm: P/N 91611680
Combined DC power and data cables:
Power + Data Input Cable, 4-pin male XLR (for P3 PowerPort) to female BBD, 0.25 m (9.8 in.): P/N 91616046
Power + Data Input Cable, 5-pin male XLR (for DMX) + wire tails (for PSU) to female BBD, 0.25 m (9.8 in.): P/N 91616048
Power + Data Input Cable, 5-pin male XLR (for DMX) + 4-pin male XLR (for P3 PowerPort) to female BBD, 0.25m (9.8 in.): P/N 91616049
Power + Data Input Cable, 5-pin male XLR (for DMX) + male Tripix type (for Martin IP66 PSU 240W) to female BBD, 0.25m (9.8 in.): P/N 91616050
Power + Data Output Cable, male BBD to 4-pin female XLR, 0.25m (9.8 in.): P/N 91616047
DMX Lead-out Cable, male BBD to 5-pin female XLR, 0.25 m (9.8 in.): P/N 91616051
BBD extension cables:
Power + Data Extension Cable, Rental Type, BBD to BBD 1 m (3.3 ft.): P/N 91616041
Power + Data Extension Cable, Rental Type, BBD to BBD, 2.5 m (8.2 ft.): P/N 91616024
Power + Data Extension Cable, Rental Type, BBD to BBD, 5 m (16.4 ft.): P/N 91616042
Power + Data Extension Cable, Rental Type, BBD to BBD, 10 m (32.8 ft.): P/N 91616043
Power + Data Extension Cable, Rental Type, BBD to BBD, 25 m (82.1 ft.): P/N 91616044
Power + Data Cable, Rental Type, 100 m (328 ft.) bulk without connectors: P/N 91616045
Connectors:
Power + Data Cable Connector, BBD, Male: P/N 91611750
Power + Data Cable Connector, BBD, Female: P/N 91611751
Blanking Caps for unused female BBD connectors, set of 10: P/N 91616052
Related Items Martin P3™ PowerPort 1500: P/N 90721040 Martin P3™ PowerPort 1000 IP Rental: P/N 90721070 Martin™ IP66 PSU 240 W external power supply unit: P/N 90760330 Martin P3-050™ System Controller: P/N 90721090 Martin P3-100™ System Controller: P/N 90721010 Martin P3-150™ System Controller: P/N 90721015 Martin P3-200™ System Controller: P/N 90721020 Martin P3-300™ System Controller: P/N 90721060 Martin P3-PC™ System Controller: P/N 90721030 Ordering Information Flight case for 10 x VDO Sceptron™ 1000mm / 30 x VDO Sceptron™ 320 mm: P/N 91515030 Flight case Extender for 10 x VDO Sceptron™ 1000 mm / 30 x VDO Sceptron™ 320 mm: P/N 91515031 VDO Sceptron 40™, 320 mm, in cardboard box: P/N 90357670 VDO Sceptron 40™, 1000 mm, in cardboard box: P/N 90357675
