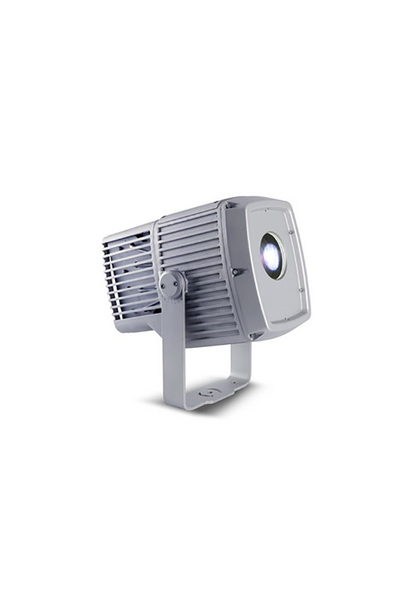

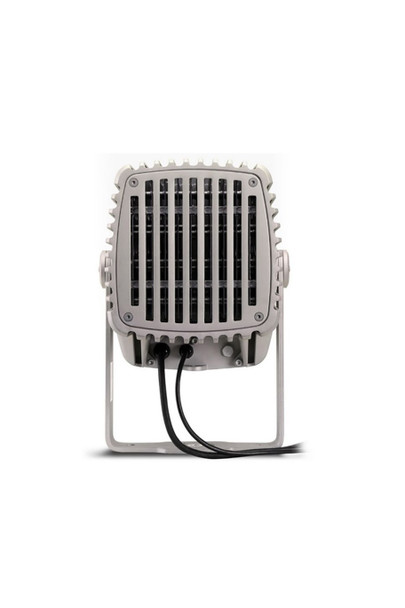

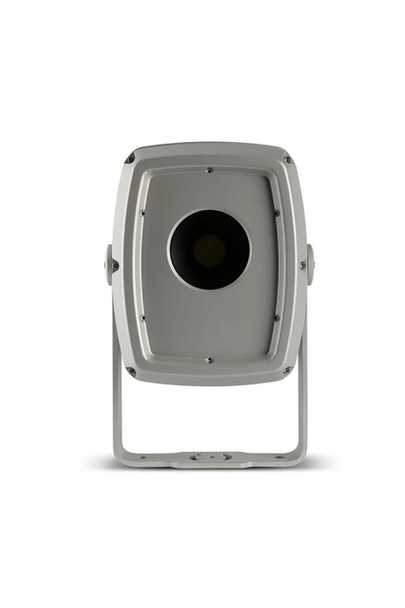

Martin Exterior Projection 500, Wide, EU, White

The Exterior™ Projection 500 is a powerful fixture for integrating textures, patterns and graphics in outdoor lighting designs. The fixture can be used for bright and dynamic logo projection as well as precision framing.

Using advanced LED technology, it offers outstanding energy efficiency, compact size and unlimited creative possibilities.

• Flat-field, high-contrast image projection
• Fully weatherized for trouble-free use with minimal maintenance in outdoor installations
• Packed with features, allowing huge creativity in setting up exciting lighting effects

Features

•     Up to 6100 lumens output with 4 beam angles variants from narrow to wide
•     Powerful close-range and long-range projection
•     Flat-field, high-contrast image projection based on high-power LED engine
•     4 layers of versatile dynamic effects (colors, gobo projection, gobo animation, prisms/frost)
•     Crisp image projection
•     Rugged IP66-rated housing
•     Minimal maintenance – low total cost of ownership

Specifications

Physical
Length: 415 mm (16.4 in.)
Width: 293 mm (11.6 in.)
Height: 444 mm (17.5 in.)
Weight: 17.5 kg (38.6 lbs.)

Dynamic Effects
Color wheel: 8 interchangeable colors + open
Gobo wheel: 6 rotating gobos plus open, indexing, variable rotation
Gobo animation: Variable speed linear animation effect
Prism: Prism wheel with 2 interchangeable prisms, prism rotation and indexing
Frost (wash effect): Motorized variable
Focus: Motorized, variable 3 m (9.8 ft.) to infinity
Dimming: Electronic, constantly variable 0-100%, 16-bit control
Shutter: Strobe and pulse effects, instant open and blackout

Control and Programming
Control options: DMX, RDM, standalone
Control resolution: 8-bit DMX control of each color Configuration, addressing and status: Onboard control panel with OLED display
DMX channels: 13
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20

Optics
Light source: 230 W white light LED engine
CRI (Color Rendering Index): 72
Color temperature: 8300K
LED lifetime: 20,000 hours (to >70% luminous output)*
LED manufacturer: Prolight Opto

Photometric Data

Narrow
Cut-off angle: 12°
Total output: 5000 lumens
Center peak: 203,000 cd

Medium:
Cut-off angle: 22°
Total output: 6100 lumens
Center peak: 77,000 cd

Wide:
Cut-off angle: 36°
Total output: 5700 lumens
Center peak: 28,000 cd

Very Wide:
Cut-off angle: 50°
Total output: 3400 lumens
Center peak: 11,000 cd

Construction
Housing: Cast aluminum
Finish: Hard anodized, metallic grey lacquered
Front glass: 5 mm (0.2 in.) anti-reflection coated tempered glass
Ingress protection: IP66
Impact resistance: IK08 (with control panel display cover plate installed)
Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
EPA (Effective Projected Area): 0.15 m2
RoHS compliant

Gobos
Suitable material: Borosilicate glass, coatings heat-resistant to 450°C (842° F)
Alternative material: Aluminum 1060, paint on front lens side, 450° C (842° F)
Gobo diameter: 30.0 mm +0/-0.3 mm (1.2 in. +0/-0.02 in.)
Maximum image diameter: 23 mm (0.91 in.)
Glass gobo thickness, minimum: 1.1 mm ±0.1 mm (0.045 ±0.004 in.)
Glass gobo thickness, maximum: 3.0 mm ±0.3 mm (0.12in. ± 0.012 in.)
Aluminum gobo thickness: 0.5 mm ± 0.02 mm (0.020 in. ± 001 in.)
HT paint

Installation
Mounting: Adjustable yoke
Location: Suitable for wet locations. Do not immerse in water.
Orientation: Any (sides must be kept vertical)
Minimum distance to illuminated surfaces: 0.5 m (20 in.)

Connections
Power cable entry: IP68 cable gland
Power connection: 1.8 m (5.9 ft.) cable tail with bare ends
Data cable entry: IP68 cable gland
Data connection: 1.8 m (5.9 ft.) combined input + output cable tail with bare ends

Electrical
AC power: 100-240/277 V nominal, 50/60 Hz
Power Supply: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 8.4A
Surge protection: 4 KV
Idle power (zero intensity, no effects applied): 32 W, 0.3A

Typical Power and Current
110 V, 60 Hz: 320 W, 2.9 A, PF 0.977
230 V, 50 Hz: 310 W, 1.4 A, PF 0.971
277 V, 60 Hz: 305 W, 1.2 A, PF 0.950

Figures are typical, not maximum. Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal
Cooling: Convection, internal forced air
Total heat dissipation (calculated): 1100 BTU/hr.
Maximum surface temperature: 85° C (185° F)
Maximum ambient temperature (Ta max.): 45° C (113° F) *
Minimum ambient temperature (Ta min.): -30° C (-22° F)**

Above this temperature, the fixture regulates output to protect from overheating.
For instant wake-up with no warm-up mode, leave power applied constantly in ambient temperatures below 0° C (32° F)

Approvals
EU safety: EN 60598-2-1, EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61547
US safety: ANSI/UL 1598
US EMC: CFR 47 Part 15 Class A
Canadian safety: CSA C22.2 No 250.0
Australia/NZ: RCM

Accessories
Glare Shield, Exterior Projection 500, aluminum: P/N 91611767
Projection Setup Gobo: P/N 91616068
EP-500, Manual Framing Module: P/N 91611842
