LD Systems Dave 10 G4X Professional Compact Sound System

Whether as a DJ, live combo, solo entertainer or at the next party: for daily live practice you need a sound system that convinces everywhere - with professional sound for different applications, with a variety of connections and accessory options for quick setup on site and with maximum reliability. In a nutshell: your sound system has to give its best around the clock.

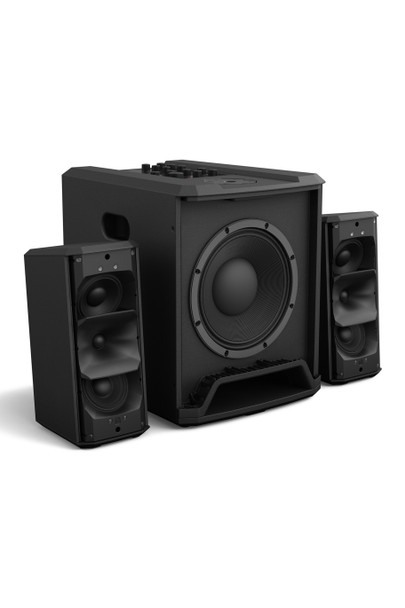

With the DAVE 10 G4X, the search has come to an end. LD Systems has completely redeveloped and coordinated the active 2.1 sound system. So you only need to set up the 10" subwoofer and the two satellites with double-4" equipment (total power: 680 W peak) and connect the equipment - the sound will inspire you from the beginning. With the integrated 6-channel mixer you have all microphones, instruments and signals under control - thanks to integrated Bluetooth also wirelessly for streaming via a smartphone or tablet.

The first two channels of the mixer are designed as a channel strip. Here you can optionally connect a microphone, a high-impedance instrument - for example guitar and bass - as well as line level sources. For the sound design, a 2-band EQ for bass and treble as well as an adjustable reverb with three presets (small, large, plate) are available. Channels 3+4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small electric drum kits.

The DAVE 10 G4X sound system becomes even more versatile when you use the digital SPDIF stereo input or Bluetooth connection to connect a CD player, computer or smartphone. You need some backing tracks or sound effects for your gig and want to play some music before the concert starts? No problem. Likewise, the inputs (channels 5+6) can be used for a karaoke system or simply to play a TV set in the sports bar with official sound.

Speaking of official sound: The DAVE 10 G4X has been designed and developed from scratch. This benefits not only instruments and music, but also speech intelligibility if you want to use the sound system every now and then for lectures, speeches or a panel discussion. The DAVE 10 G4X works with a new dome tweeter and waveguides for homogeneous dispersion as well as with FIR filters and state-of-the-art DSP technology for transparent, distortion-free sound - thanks to the optimized bass reflex system in the subwoofer with minimal ventilation noise.

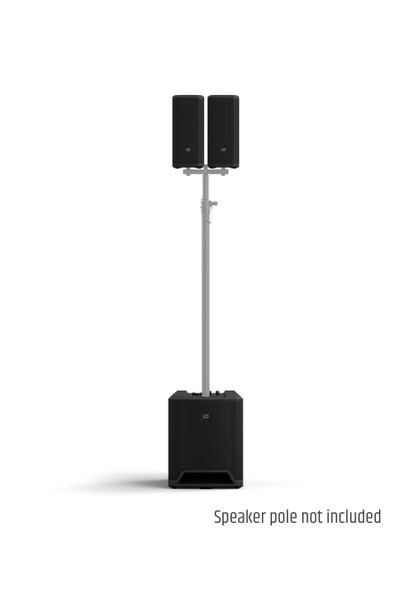

The DAVE 10 G4X sound system is a 2.1 stereo sound system with two selectable stereo presets. As a rule, you will place the two satellites left and right in the room or on a stage. The classic stereo preset is intended for this purpose. For a particularly space-saving setup, however, the two satellites can also be mounted on a single T-tripod above the subwoofer. Since the satellites are very close to each other in this case, interference is inevitable. For this purpose, there is a separate preset (cluster mode) with a special M/S division to reproduce the stereo signal interference-free. In this way, you also get more headroom and directivity.

When it comes to accessories, LD Systems has thought of all common applications. The range extends from custom-fit bags and a trolley to the aforementioned T-tripod to a pole-mount tripod or a wall mount for the satellite.

System Perfomance (RMS): 340W

System Power (Peak): 680W

SPL (continius): 114dB

SPL (Peak): 120dB

Frequency response (-10dB): 37-20000 Hz

Crossover frequency: 110Hz

Dispersion: 100° x 60°

Weight: 54Lb

Subwoofer

Size Woofer: 10"

Size Woofer: 304.8 mm

Magnet woofer: Ferrite

Brand woofer: Custom Made

Voice coil woofer: 2"

Voice coil woofer: 50 mm

Housing design: Bass reflex

Housing material: 15mm multiplex, 18mm multiplex

Housing surface: Polyurea

Wide subwoofer: 350mm

Height subwoofer: 436 mm

Deep subwoofer: 440mm

Weight: 16.5

Features: 3 reverb presets, 6 channel mixer, Bluetooth Cluster / Stereo Preset, M20, SPDIF

Mid/Hi System

Midrange size: 2 x 4"

Midrange size: 2x101.6 mm

Magnet Midrange: Ferrite

Midrange brand: Custom Made

Voice coil midrange: 1"

Voice coil midrange: 25.4 mm

Horn: CD Waveguide

Size tweeter: 1"

Size tweeter: 25.4

Magnet tweeter: Neodymium

Voice coil tweeter: 1"

Voice coil midrange: 25.4 MM

Impedance Mid/Hi System: 4 ohms

Speaker connections Mid/Hi system: 1

Speaker connections Mid/Hi system: Speak on compatible

Housing type Mid/Hi system: Bass reflex

Carrying handles Mid / Hi System: 1

Housing material Mid/Hi system: 12 mm multiplex, 15 mm multiplex

Housing surface Mid/Hi system: Polyurea

Wide Mid/Hi system: 150 mm

Altitude Mid/Hi system: 345mm

Deep Mid/Hi system: 170 mm

Weight Mid/Hi system : 4 kg

Features Mid/Hi System: Star flange 16 mm

Amplifier module (integrated in the subwoofer)

Amplifier: Class D

Amplifier Power Subwoofer (RMS): 170W

Amplifier Power Mid/Hi (RMS): 2x85W

Protection circuits: Short circuit Limiter Overload

Cooling: Passive

Operating temperature: 0°C - 40°C

Humidity range: <80% (non-condensing)

Controls: Input type, Input Volume, Low / High EQ, Main Volume, Power Reverb Stereo / Cluster mode, Sub / High level

Indicators: Limit Power Protect Signal

Power supply connection: IEC

Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz

Power consumption: 120W

Multi inputs: 2 x Switchable (MIC, LINE, HI-Z)

Multi input connector: Combo XLR

Line inputs: 2

Line Input Connectors: Combo XLR, RCA

Digital inputs: 2

Digital Input Connectors: SPDIF

Speaker outputs: 2

Speaker outputs connectors: Speak on compatible

Speak on compatible: A2DP

Bluetooth audio decoder: SBC

Bluetooth Version: 5.0
