Description

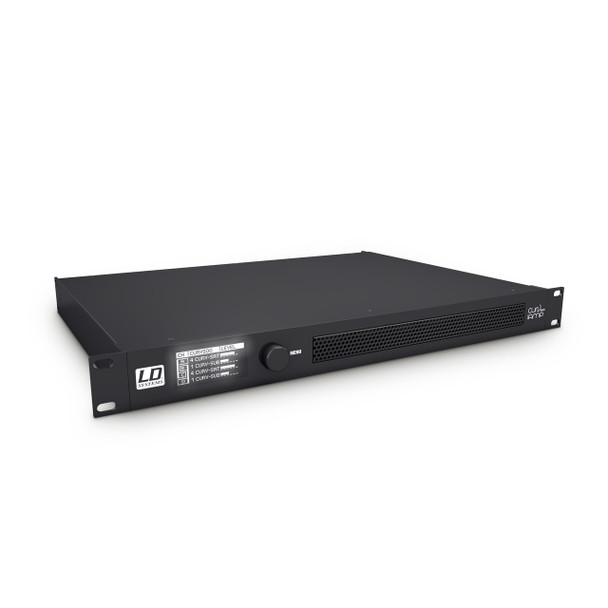

Purpose-designed for CURV 500 installations the iAMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.
Operating the iAMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low-noise fan. Input is on balanced XLR and terminal block connectors. The iAMP is capable of driving up to six CURV 500 satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.
- Product number: LDCURV500IAMP
- Product type: Power Amplifiers
- Type: Installation Power Amplifiers
- Rated ouput power (1kHz @ 2,7 Ohms): 4 x 240W
- Rated ouput power (1kHz @ 4 Ohms): 4 x 240W
- Rated ouput power (1kHz @ 8 Ohms): 4 x 120W
- Rated ouput power (1kHz @ 16 Ohms): 4 x 60
- Output circuitry: Class D
- Frequency response: 10 - 22000Hz
- THD: < 0,01 %
- Protection circuits: thermal overload, DC, short circuit, over-current, soft start
- Controls: Push encoder
- Indicators: OLED Display
- Line inputs: 4
- Line input connectors: XLR, terminal block
- Loudspeaker outputs: 4
- Speaker output connections: terminal block, Speakon compatible
- Cooling: temperature controlled low-noise fan, noiseless in idle mode
- Operating voltage: Switching power supply, 115 V AC / 230 V AC (switchable)
- Power consumption @ full load: 1100W
- Width: 482mm
- Height: 44mm
- Depth: 420mm
- Weight: 6.8kg
