JBL

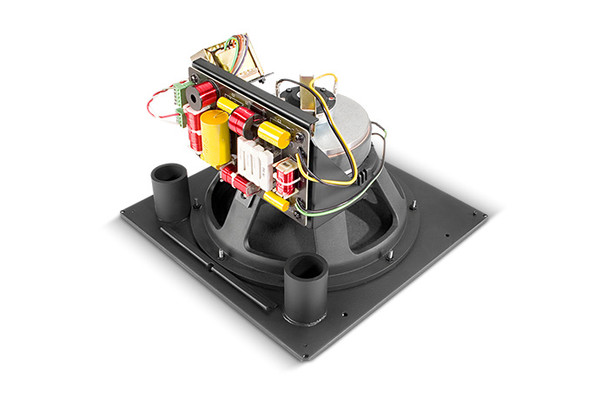

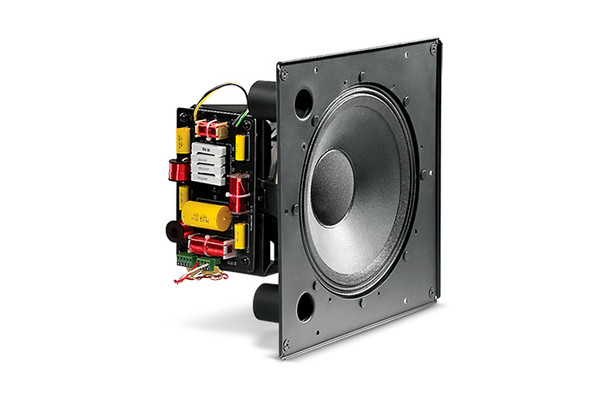

JBL CONTROL 322C - HIGH OUTPUT 12' CEILING COAX High-Power 12? Coax Ceiling Loudpeaker with Medium Format Compression Driver. True Broadband 90§ Coverage. 400 Watts, 32 Hz to 20 kHz Frequency Response, 95 dB Sensitivity. 2407H Compression Driver.

Write a Review
$652.00
JBL CONTROL 322C - HIGH OUTPUT 12' CEILING COAX High-Power 12? Coax Ceiling Loudpeaker with Medium Format Compression Driver. True Broadband 90§ Coverage. 400 Watts, 32 Hz to 20 kHz Frequency Response, 95 dB Sensitivity. 2407H Compression Driver.
JBL CONTROL 322C - HIGH OUTPUT 12' CEILING COAX High-Power 12? Coax Ceiling Loudpeaker with Medium Format Compression Driver. True Broadband 90§ Coverage. 400 Watts, 32 Hz to 20 kHz Frequency Response, 95 dB Sensitivity. 2407H Compression Driver.
JBL CONTROL 322C - IMG01
SKU:
CONTROL 322C
UPC:
50036905152
MPN:
50036905152
Width:
17.00 (in)
Height:
12.00 (in)
Depth:
17.00 (in)
Shipping:
Free Shipping
Current Stock:

With every purchase of $75 or more, use promo code "HOL24" at checkout to receive a free pair of Technical Pro HPS820 Professional Headphones.

Description

High-output 12 in. Coaxial Ceiling Loudspeaker

The Control 322C delivers exceptional next-generation performance in a coaxial point source design
ceiling loudspeaker.



FEATURES

  • Consistent 90° broadband pattern control.
  • Components
    • Kevlar-reinforced 300 mm (12 in) woofer with 75 mm (3 inch) voice-coil cone.
    • Medium-format compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • Power handling of 400 Watts with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.


SPECIFICATIONS


  Frequency Range (-10 dB) 32 Hz – 20 kHz
  Long-Term System
Power Rating		 400 W (1600 W peak), 2 hrs
250 W (1000 W peak), 100 hrs
  Sensitivity (2.83V@ 1m) 95 dB measured half-space
100 dB computed for competitive comparison
  Frequency Response (±3 dB) 48 Hz – 19 kHz
  Coverage Pattern 90° conical, broadband (Avg. 1k - 16kHz)
  Directivity Factor (Q) 9 (1k - 16kHz)
  Directivity Index (DI) 9.5dB (1k - 16kHz)
  Crossover Network 1.4 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order
low-pass to LF
  Nominal Impedance 8 ohms
  Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle
of 223 mm (8.8 in)
