JBL AW266 Overview

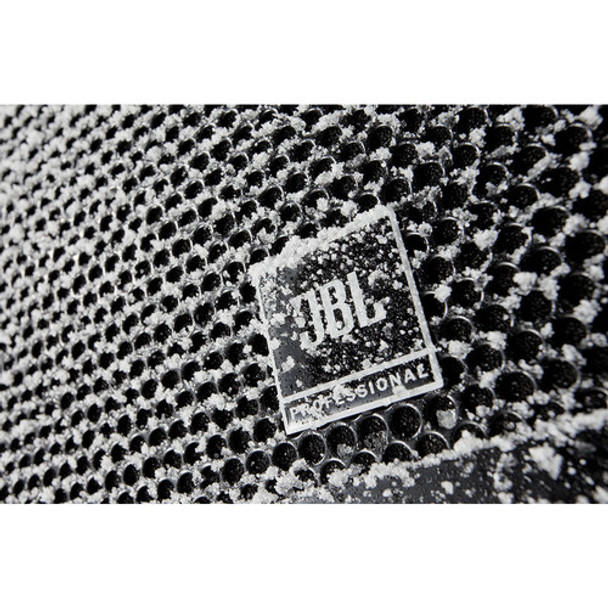

The black AW266 High Power 2-Way All-Weather Loudspeaker with 12" LF from JBL is designed as a high power, lightweight, 2-way, full-range loudspeaker system The system is comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H low-frequency driver and a 2432H high frequency 1.5" exit voice-coil compression driver. The large format progressive transition wave-guide provides 60 x 60° coverage and the speaker is equipped with a 400W transformer for 70/100V applications. The enclosure is constructed of multi-layer glass composite and braced to maximize low-frequency performance. The 16-gauge stainless steel grille is backed with open cell foam and stainless steel mesh for protection against the environment.
JBL AW266 Specs
| Driver | Low Frequency Driver: 1 x JBL 2262H 12" (300 mm) Differential Drive driver with 3" (75 mm) dual voice coil High Frequency Driver: JBL 2432H 1.5" (38 mm) exit compression driver with 3" (75 mm) voice coil |
| Crossover Frequency | 1.1 kHz |
| Frequency Range | 40 Hz - 20 kHz |
| Frequency Response ± 3dB | 51 Hz - 18 kHz |
| Coverage Pattern | 60 x 60° |
| Directivity Factor | 15.8 |
| Directivity Index | 12 dB |
| Impedance | 8 ohms |
| Long-Term System Power Rating | 500 W (200 W peak), 100 hours |
| Sensitivity | Systen: 98 dB LF Driver: 96 dB SPL HF Driver: 113 dB SPL |
| Maximum Sound Pressure Level (SPL) | 126 dB |
| Transformer Taps | 70 V: 400 W, 200 W, 100 W >br> 100 V: 400 W, 200 W |
| Connectors | Barrier strip terminals |
| Enclosure Material | Hand-laminated fiberglass |
| Dimensions (HxWxD) | 16.1 x 28.8 x 17.8" / 409.0 x 732.0 x 452.0 mm (in horizontal cabinet orientation) |
| Weight | 55.5 lb / 25.2 kg |
| Package Weight | 71.4 lb |
| Box Dimensions (LxWxH) | 32 x 20 x 19" |
