Description
JBL AM5212 Overview

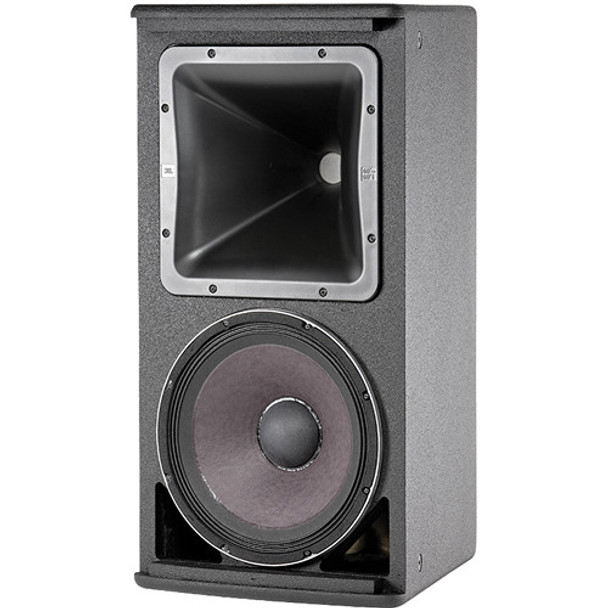

The black JBL Professional AM5212/26 Passive 2-Way 12" Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatureal sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The AM5212/26 is comprised of the JBL Differential Drive, dual-voice coil and dual-magnetic gap 262H-1 (12") low-frequency driver, and 2408H-1 high-frequency 1.5" exit, 1.5" voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5212/26 will perform as either a bi-amped or passive cabinet, at the flick of a switch.
JBL AM5212 Specs
Active or Passive | Passive |
Low Frequency Driver | 1 x JBL 262H-1 12" / 305 mm Driver with 2" / 50.8 mm Dual Voice Coil Nominal Impedance: 8 Ohms Sensitivity: 97 dB SPL (1W @ 1m, within Operational Band) |
High Frequency Driver | JBL 2408H-1, 1.5" / 38 mm Exit Compression Driver, 1.5" / 38 mm Voice Coil Nominal Impedance: 8 Ohms Sensitivity: 113 dB SPL (1W @ 1m) |
Frequency Range | 37 Hz to 20 kHz (-10 dB) |
Frequency Response ± 3dB | 43 Hz to 18 kHz |
Coverage Pattern | 120° x 60° |
Coverage Modes | Bi-Amp / Passive Switchable |
Directivity Factor | 8.2 dB (Q) |
Directivity Index | 9.1 dB |
Crossover Point | 1.5 kHz (Passive) |
Transducer Power Rating | 400 W (1600 W Peak), 2 hr 300 W (1200 W Peak), 100 hr HF: 40 W (160 W Peak), 2 hr |
Long-Term System Power Rating | 300 W (1200 W Peak) 100 Hr (IEC) |
Maximum SPL | Bi-Amp Mode: LF: 122 dB-SPL Cont Avg (128 dB Peak) HF: 129 dB-SPL cont avg (135 dB Peak) |
System Sensitivity | Passive Mode: 115 dB SPL (1W @ 1m) |
Horn Waveguide | PT-H126HF-1 |
Enclosure Material | Trapezoidal with 15 Degree Side Angles, 5/8" / 16 mm Exterior Grade 11-Ply Birch Plywood |
Suspension Attachment | 15 Points (4 Top, 4 Bottom, 2 each Side, 3 Rear), M10 Threaded Hardware |
Finish | Black DuraFlex Finish |
Grille | Powder Coated 14 Gauge Perforated Steel, with Acoustically Transparent Black Foam Backing |
Environmental Specifcations | Mil-Std 810; IP-x3 per IEC529 |
Dimensions | 28.06 x 14.6 x 18.1" / 713 x 371 x 458 mm |
Weight | 45 lb / 20.2 kg |
Package Weight | 49 lb |
Box Dimensions (LxWxH) | 29.5 x 19.25 x 15.75" |
