Chauvet DJ GigBAR Move + ILS Effect Lighting Systems with Hurricane 700 Fog Machines Package

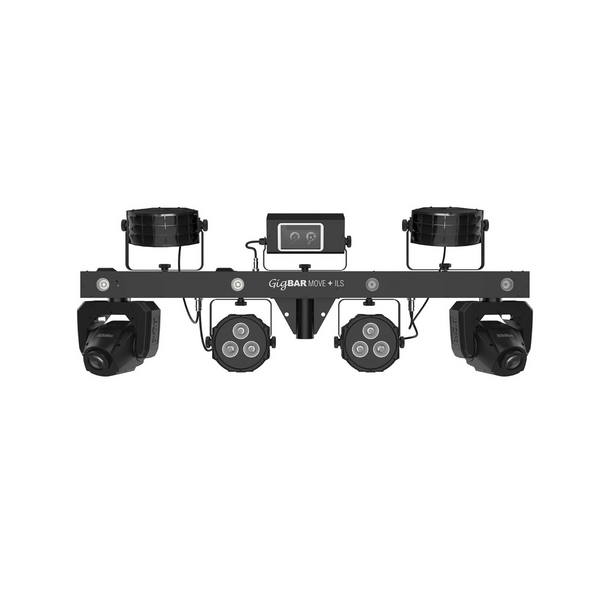

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar

• ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types

• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver

• Use the included RF remote to trigger the built-in shows without needing line of sight

• Powerful moving heads with separate color and gobo wheels allow for creative programming

• Totem Mode keeps the moving heads focused on the dance floor

• Easy navigation and access to all moving head functions directly from the full-color LCD display

• Safely mounts to truss or ceilings using the 3/8 in threaded inserts

• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup

• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects

• Individual control of each effect ensures your show looks the way you need it to

• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

Specifications:

• DMX Channels: 3, 28, or 50
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/180°
• Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos: (moving head): 9 + open, continuous scroll at variable speeds
• Light Source (pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
• Light Source (strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
• Light Source (derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
• Light Source (moving head): 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
• Light Source (Laser): 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
• Strobe Rate: 0 to 30 Hz
• Beam Angle: (moving head): 17° / (pars): 22° / (strobe): 30°
• Field Angle: (pars): 33° / (strobe): 62°
• Coverage Angle: (derby): 131° / (laser): 93°
• Fits Tripod Size: 1.5 in (37.4 mm)
• Illuminance: (pars): 1,205 lux @ 2 m (per par) / (moving head): 5,140 lux @ 2 m (per head) / (strobe): 130 lux @ 2 m
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz / 79 W, 0.6 A @ 230 V, 50 Hz / 248 W, 1.8 A @ 230 V, 50 Hz
• Weight: (bar only) 31 lbs (14 kg)
• Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Approvals: CE, UKCA, RoHS, FCC, FDA
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Footswitch Battery: 9 V alkaline
• Included Controllers: RF remote, wireless footswitch
• Cable Length: 10 ft (3 m)
• Tripod Thickness: 1.37 in (35 mm)
• Optional Controllers: RF

Hurricane 700

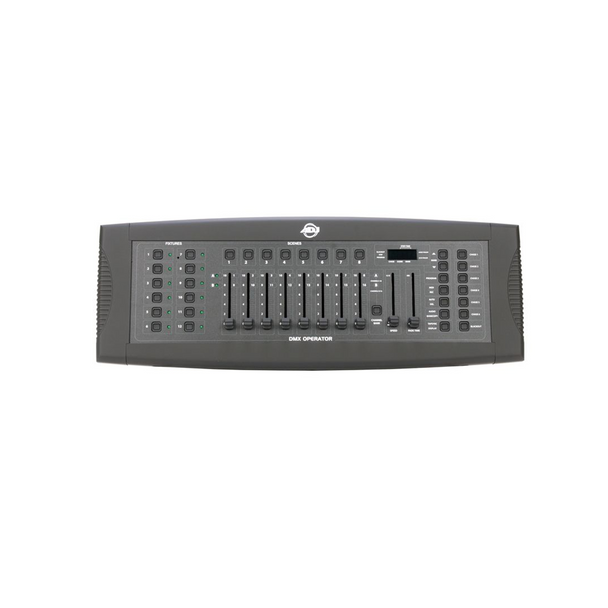

DMX Operator

A top DMX controller, ADJ's DMX Operator controls up to 192 DMX channels. With it, you can record up to 6 chases which you can then playback with separate fade and step speeds. The 8 individual faders provide easy controllability for any DMX 512 intelligent fixture.

• Control up to192 DMX channels
• Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
• Fixtures with less than 16 DMX channels may be combined on 1 fixture button to optimize channel space
• Record up to 6 programmable chases with separate fade times and step speeds
• 8 individual faders provided you with easy channel control for your intelligent light or dimmer packs
• MIDI controllable
• DMX-512, 3 pin XLR signal
• Built-in Microphone for chase step activation
• Power input: DC 9V-12V, 220 mA min. power supply included, 120V or 220V operation (not multi-voltage)
• Dimensions: 5.25" L x 19" W x 2.5" H - 19 in. / 3 r.m. spaces
• Weight: 5 lbs

What's in the box

(2) Chauvet DJ GigBAR Move + ILS 5-in-1 Effect Lighting Systems
(5) Power cords
(1) RF Remote
(2) Carry bags
(2) Tripods
(2) Tripod carry bags
(2) Footswitches
(2) Hurricane 700 Fog Machines
(2) Pints of Fog Fluid
(2) Permanently Wired Remotes
(1) American DJ DMX Operator Programmable DMX Controller
(2) Clutch 25' 3-Pin DMX Lighting Cables
