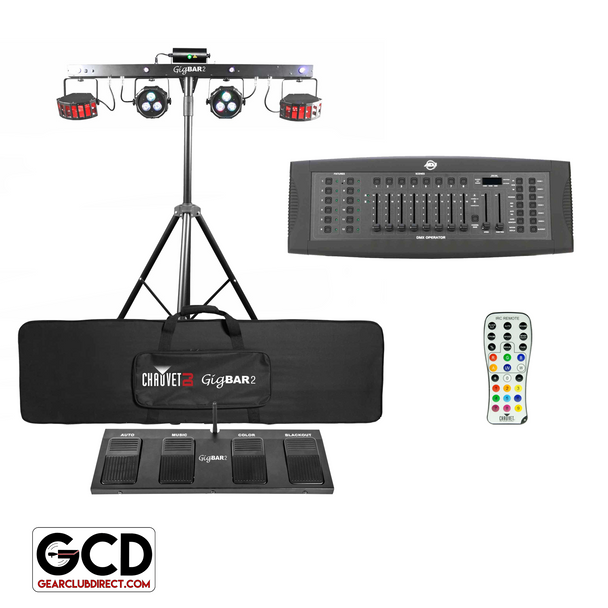

Chauvet DJ GigBAR 2 4-in-1 Complete Effect Light System with DMX Controller Package

Chauvet DJ GigBAR 2 4-in-1 Complete Effect Light System

GigBAR 2 adds to the original ultimate pack and go 4-in-1 light by including UV in its pars and strobes for increased color mixing and effects. GigBAR 2 includes a pair of LED Derby fixtures, LED pars, a laser, and 4 high-power, LED strobe lights all mounted on one bar. 4 individually adjustable and interchangeable heads let you cover any room or stage. GigBAR 2 strobes allow you to create exciting chase and slow-motion effects and the adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions. Phenomenal built in automated and sound-activated programs are on board that include all 4 effects to make one complete show and you can easily control the unit from the display, IRC, wireless foot switch or DMX to take your gig to a higher level. Master/slave multiple units under the control of a single IRC or wireless foot switch and save time running cables and extension cords by power linking multiple units. GigBAR 2 is ready for every application using the included mounting brackets to attach to truss. Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags.

GigBAR 2 features

• 4-in-1 light that includes a pair of LED Derby, LED pars, a laser, and strobe effect all mounted on one bar.
• Added UV in pars and strobes for increased color mixing and effects.
• Cover any room or stage with 4 individually adjustable and interchangeable heads.

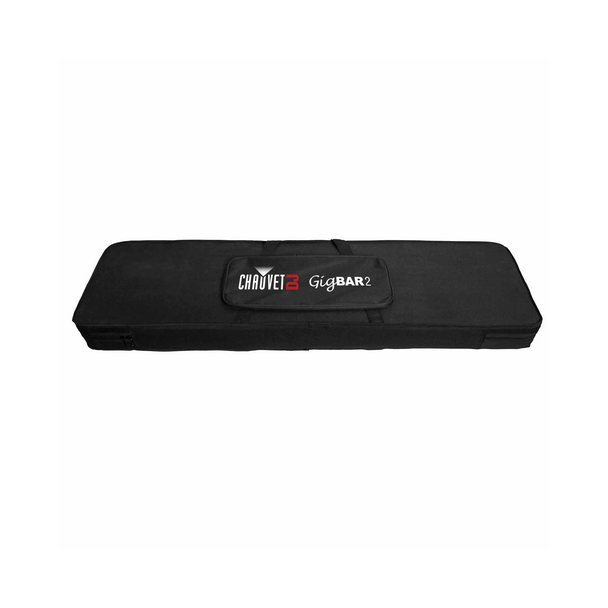

• Get in and get out quickly with the included tripod, wireless footswitch and FREE carry bags.
• Ready for every application using the included mounting brackets to attach to truss.
• 4 high-power, LED strobe lights create exciting chase and slow motion effects.
• Adjustable red and green laser scatters hundreds of bright dots and beams in all the right directions.
• Phenomenal built in automated and sound-activated programs that include all 4 effects to make one complete show.
• Easily control from the display, IRC, wireless foot switch or DMX to take your gig to a higher level.
• Master/slave multiple units under the control of a single IRC or wireless foot switch.
• Save time running cables and extension cords by power linking multiple units.

Chauvet DJ GigBAR 2 Specifications

• DMX Channels: 3, 11 or 23
• DMX Connectors: 3-pin XLR
• Light Source: (pars): 6 LEDs (Quad-color RGB+UV) 3.5 W (1.1 A), 50,000 hours life expectancy
• (strobe): 4 LEDs (white & UV) 1.8 W (600 mA), 50,000 hours life expectancy
• (Derby): 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy
• 650nm/100 mW (red) laser diode, 532nm/30 mW (green) laser diode
• Strobe Rate: (strobe): 0 to 18 Hz
• Beam Angle: (pars): 13°
• (strobe): 8°
• Field Angle: (pars): 24°
• (strobe): 18
• Coverage Angle: (laser): 93°
• (Derby): 114°
• Fits Tripod Size: 37.4 mm
• Illuminance: (pars): 1,205 lux @ 2 m (per head)
• (strobe): 86 lux @ 2 m (per zone)
• Power Linking: 8 units @ 120 V; 15 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 68 W, 1 A @ 120 V, 60 Hz
• 64 W, 0.5 A @ 230 V, 50 Hz
• Weight: 6.6 kg
• Size: 1185 x 110 x 386.5 mm
• Approvals: CE, FDA, FCC
• Stand Height: 1.5 to 2.5 m
• Tripod leg width: 1.2 m
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 30.5 m
• Included Remote: IRC-6

American DJ DMX Operator

ADJ's DMX Operator Controller has 12 individual fixture channels which allow you to control up to 12 separate intelligent lights with up to 16 DMX channels per fixture and any fixtures with less than 16 DMX channels can be combined on one channel which gives you 192 DMX channels to do what ever you want with.

With ADJ's DMX Operator Controller you can record up to 6 programmable chases with fade times and different speeds. The 8 individual faders provided you with easy programmability for the intelligent light or dimmer packs that you may have. ADJ also included a USB input for your convenience to save your programs and settings or use it to power an USB work light. The blackout is controlled by the MIDI input signal.

• Control up to192 DMX channels
• Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture
• Fixtures with less than 16 DMX channels may be combined on 1 fixture button to optimize channel space
• Record up to 6 programmable chases with separate fade times and step speeds
• 8 individual faders provided you with easy channel control for your intelligent light or dimmer packs
• MIDI controllable
• DMX-512, 3 pin XLR signal
• Built-in Microphone for chase step activation
• Power input: DC 9V-12V, 220 mA min. power supply included, 120V or 220V operation (not multi-voltage)
• Dimensions: 5.25" L x 19" W x 2.5" H - 19 in. / 3 r.m. spaces
• Weight: 5 lbs

What's in the box
