Description

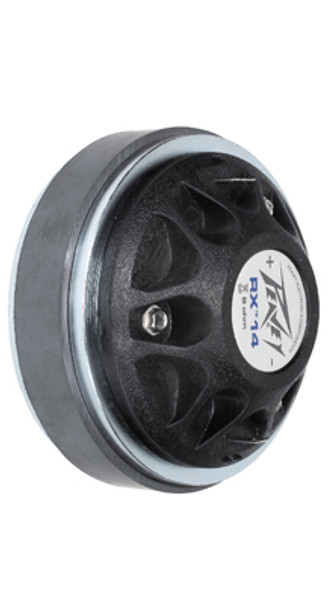

Peavey RX14 Driver
RX14 Driver
Features
- 1.4"
- Throat Parameter: .938" / 23.8 mm
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 7.1 Ohms
- DC Resistance: 6.8 Ohms
- Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous
- Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
- Nominal Efficiency: 30%
- Frequency Response: 1.5 kHz to 20 kHz
- Recommended Crossover: 1,800 Hz at 12 dB / Octave
- Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
- Diaphragm: Commercially pure titanium
- Voice Coil Diameter: 1.4" / 34.4 mm
- Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
- Flux Density: 11,500 gauss (1.15T)
- Dimensions: 3.54" (90 mm) diameterx 2.40" (61 mm) depth
- Horn Coupling Diameter: .938" (23.8 mm)
- Horn Coupling Threads: Standard 1 3/8" / 18"
- Net Weight: 33.6 oz.
- Shipping Weight: 38 oz.
- Voice Coil Cooling: Ferrofluid
- Weight Unpacked: 2.26 lb(1.024 kg)
- Weight Packed: 2.26 lb(1.024 kg)
- Width Packed: 4.25"(10.795 cm)
- Height Packed: 4.25"(10.795 cm)
- Depth Packed: 3.25"(8.255 cm)
