Description

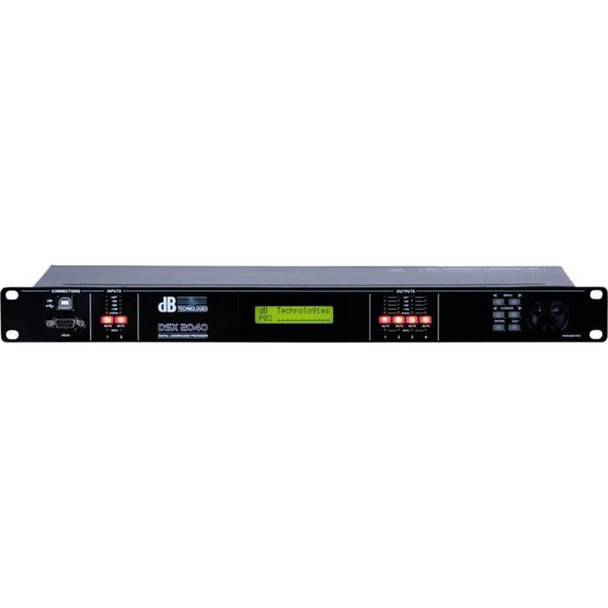

The DSX 2040 2 in 4 Digital Controller from dBTechnologies is a digital loudspeaker management system suitable for use in mobile racks as well as for fixed installation. With two inputs and four outputs, this controller can be used with any two-way active stereo systems made up of subwoofers and mid- / high-range units. An extensive set of signal processing tools such as input compressors, delays, 31-band graphic input EQ, and six parametric EQs for each output lets you tune speaker systems with surgical precision to suit the given venue and operating conditions. Inputs and outputs can be routed in multiple configurations to meet any requirement. Each output also features a precision-tunable digital limiter to protect speaker components.

The DSX 2040 Controller can be controlled or configured in real time via the front panel push-buttons or with the intuitive PC GUI accessed via the RS-232 or USB interface. The 2 x 16 character backlit LCD display and LED level meters above each input and output allow you to monitor the unit's performance. With the benefit of controller software, you can easily create presets for dBTechnologies speakers, as well as custom configurations, and load these programs to the controller. Software upgrades for CPU and DSP via PC keep the device current with newly developed algorithms and functions.

Features

2 inputs and 4 outputs with flexible routing
High-performance 24-bit A/D converters
Parametric EQs for inputs and outputs
31-band graphic input EQ
96 kHz / 40-bit signal processing with >115 dB dynamic range
1 Hz frequency resolution
Multiple crossover types with full-function limiters
Input compressors
2-line x 16 character backlit LCD display
5-segment LED meter for each channel
Precision-adjustable digital limiter for each output
Storage of up to 30 preset setups
USB and RS232 interface for PC control and configuration
Security lock
Individual channel buttons with linking capability
CPU and DSP upgrade via PC

What's in the box

XConsole Software CD
Power Cord
Limited 2-Year Warranty

Specifications

Input/Output
Input Impedance	Input: >10k ohms Output: 50 ohms
Maximum Level	+20 dBu
Type		Audio Performance	Frequency Response	±0.1 dB (20 Hz to 30 kHz)	Dynamic Range	115 dB typical (unweighted)	Common Mode Rejection Ratio	>60 dB (50 Hz to 10 kHz)	Crosstalk	<-100 dB	Distortion	Digital Audio	Processor	40-bit	Sampling Rate	96 kHz	Digital to Analog Converter	High-performance 24-bit	Propagation Delay	Front Panel Controls	Display	2 x 16 character backlit LCD	Level Meters	5-segment LED	Buttons	Mute/edit controls Menu controls	Encoder	Connectors	Analog Inputs	3-pin female XLR	Analog Outputs	3-pin male XLR	RS-232	Female DB-9	USB	Type B	Power	Control Adjustments	Mic Gain Range	0 to +45 dB in 3 dB steps	Gain	-40 to +15 dB in 0.25 dB steps	Polarity	+/-	Delay	Equalizer	Number	Equalizers: 8 per input/output 31-Band Graphic Equalizers: 1 per input	Type	Parametric, Hi-shelf, Lo-shelf, Phase 1, Phase 2	Gain	-30 to +15 dB in 0.25 dB steps	Bandwidth	Crossover	Filter	2 per input/output	Filter Type	Butterworth, Bessel, Linkwitz Riley	Slope	Limiters	Number	1 per output	Threshold	-20 to +20 dBu	Attack	0.3 to 100 ms	Release	System	Number of Presets	30	Program	12 character length	Units of Measure	Delay Units: ms, ft, m	Frequency	General	Power	90 to 240 VAC (50 to 60 Hz)	Dimensions	Weight	10 lb (4.5 kg)
