Chauvet Professional

Chauvet Professional MaverickMK3PROFILECX - Maverick Mk 3 Profile CX(High CRI)

Write a Review
$10,625.00
Chauvet Professional MaverickMK3PROFILECX - Maverick Mk 3 Profile CX(High CRI)
Chauvet Professional MaverickMK3PROFILECX - Maverick Mk 3 Profile CX(High CRI)
Chauvet Professional MaverickMK3PROFILECX - Maverick Mk 3 Profile CX(High CRI)
Chauvet Professional MaverickMK3PROFILECX - Maverick Mk 3 Profile CX(High CRI)
Chauvet Professional MaverickMK3PROFILECX - IMG01
SKU:
MaverickMK3PROFILECX
UPC:
7.81E+11
MPN:
7.81E+11
Width:
25.20 (in)
Height:
19.69 (in)
Depth:
27.17 (in)
Shipping:
Free Shipping
Current Stock:

Out of stock or discontinued
Check new versions and similar products

With every purchase of $75 or more, use promo code "HOL24" at checkout to receive a free pair of Technical Pro HPS820 Professional Headphones.

Description

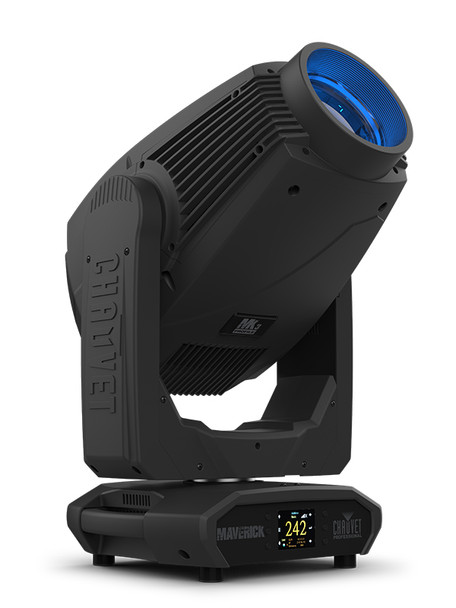

Maverick MK3 Profile CX
(* Special order only)

Maverick MK3 Profile CX features a powerful output of over 41,000 source lumens and a superb CRI of 92 designed specifically for broadcast and fashion applications where exceptional skin tone renderings are crucial. This high-CRI variation of the Maverick MK3 Profile also features an advanced, 4-blade shutter frame system with the ability to fully blackout and a 120° rotation. Its precision LED optics feature CMY + CTO color mixing and a fast 9:1 zoom ratio that maintains a flat field of focus even when fully wide. Maverick MK3 Profile offers great static, rotating, and animation effects from its 2 gobo wheels (1 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: super light and medium. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

AT A GLANCE

  • Fully featured 820 W high CRI LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, animation wheel, a 9:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel

  • 16-bit dimming of master dimmer for smooth control of fades

  • Variable CMY + CTO color mixing system to create a wide pallet of colors

  • Independently layerable 5 facet linear and 5 facet round prisms for increased prism options

  • One rotating and one static gobo wheel for dynamic texture possibilities

  • Independent light and medium frosts for beam control

  • + or – 60 degree rotation framing shutter system to allow for better framing positioning.

  • Animation wheel for enhanced visual effects

  • Iris for total beam control

  • RDM control over DMX for fixture reporting

  • 6° to 54° zoom angle for variable beam sizes

  • Three menu presets and preset cross load for decreased shop setup time

  • True 1 compatible power input

  • Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (CW) 820W, (24 A), 5,616K, 50,000 hours life expectancy
  • Color Temperature (at full): 5616 K
  • CRI: 92
  • Beam Angle: 6° to 45°
  • Field Angle: 6° to 55°
  • Zoom Angle: 6° to 55°
  • Lumens – Source: 41,000
  • Lumens – Output: 17,000
  • Illuminance (6°): 35,600 lux @ 5 m
  • Illuminance (55°): 1,140 lux @ 5 m
  • Illuminance W / CRI filter (6°): 23,500 lux @ 5 m
  • Illuminance W / CRI filter (55°): 778 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 6 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag, CRI filter, color correction
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open (9 glass), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 23 mm) (image), # mm (max. thickness
  • Effect Wheel: 1 effect
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost 1: Light Frost - Motorized
  • Frost 2: Medium Frost - Motorized
  • Iris: Motorized
  • Prism: 5 Facets, round, motorized, rotating
  • Prism: 5 Facets, linear, motorized, rotating
  • Strobe Rate: 0 to 25 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 16.10 x 12.20 x 29.43 in (409 x 310 x 748 mm)
  • Dimensions (shipping size): 27.1 x 25.1 x 19.6 in (690 x 640 x 500mm)
  • Weight: 76.4 lb (34.7 kg)
  • Weight (shipping weight): 80.5 lb (36.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, DMX, W-DMX, RDM, sACN
  • DMX Channels: 38 or 54
  • Art-Net Channels: 38 or 54
  • Modes/Personalities: 2 personalities (38, 54)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 1,070 W, 9.04 A @ 120 V, 60 Hz
  • Power and Current: 1,050 W, 5.13 A @ 208 V, 60 Hz
  • Power and Current: 1,050 W, 4.56 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Maverick MK3 Profile
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Quick Reference Guide
