Description

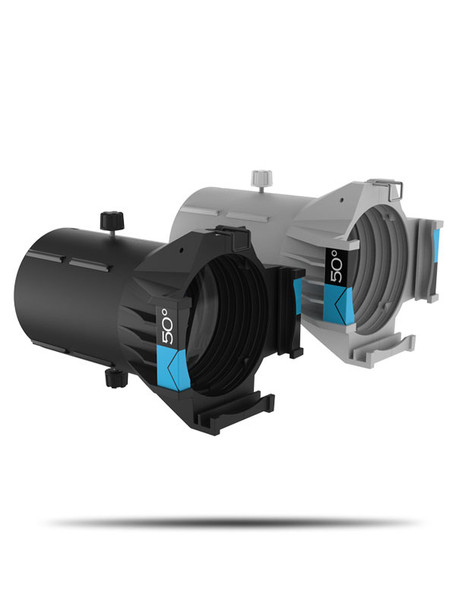

Ovation Ellipsoidal HD Lens Tubes
Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.
AT A GLANCE
-
Fixed focal length lens tube for the Ovation ellipsoidal fixtures
-
Dual aspheric lenses provide precise focus for crisp gobo projection
-
Integrated gel frame holder and gel frame included
SPECIFICATIONS
OPTICAL
- Installed Optics (5°): 5°
- Installed Optics (10°): 10°
- Installed Optics (14°): 14°
- Installed Optics (19°): 19°
- Installed Optics (26°): 26°
- Installed Optics (36°): 36°
- Installed Optics (50°): 50°
CONSTRUCTION / PHYSICAL
- Dimensions (5° lens): 24.5 x 14.17 x 14.48 in (622.4 x 360 x 368 mm)
- Dimensions (10° lens): 15.78 x 12.16 x 12.48 in (400.9 x 309 x 317 mm)
- Dimensions (14° lens): 12.7 x 7.8 x 8 in (323 x 198 x 204 mm)
- Dimensions (19°, 26°, 36°, and 50° lens): 9.64 x 6.85 x 6.85 in (245 x 174 x 174 mm)
- Weight (5°): 5.8 lb (2.7 kg)
- Weight (10°): 3.8 lb (1.8 kg)
- Weight (14°): 5.4 lb (2.4 kg)
- Weight (19°): 4.2 lb (1.9 kg)
- Weight (26°): 4.0 lb (1.8 kg)
- Weight (36°): 3.8 lb (1.7 kg)
- Weight (50°): 4.0 lb (1.8 kg)
- Accessory Holder/ Gel Frame Size (5° lens): 14 in (356 mm)
- Accessory Holder/ Gel Frame Size (10° lens): 12 in (304 mm)
- Accessory Holder/ Gel Frame Size (14° lens): 7.50 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
CERTIFICATIONS / QUALIFICATIONS
- IP Rating: IP65, outdoor/wet
WHAT'S INCLUDED
- OHDLENS5
- OHDLENS10
- OHDLENS14
- OHDLENS19
- OHDLENS26
- OHDLENS36
- OHDLENS50
