Chauvet DJ

Chauvet DJ PINSPOTBAR - Pinspot Bar

Write a Review
$449.99
Chauvet DJ PINSPOTBAR - Pinspot Bar
Chauvet DJ PINSPOTBAR - Pinspot Bar
Chauvet DJ PINSPOTBAR - Pinspot Bar
Chauvet DJ PINSPOTBAR - Pinspot Bar
Chauvet DJ PINSPOTBAR - IMG01
SKU:
PINSPOTBAR
UPC:
781462220082
MPN:
781462220082
Width:
40.00 (in)
Height:
5.00 (in)
Depth:
6.00 (in)
Shipping:
Free Shipping
Current Stock:

With every purchase of $75 or more, use promo code "HOL24" at checkout to receive a free pair of Technical Pro HPS820 Professional Headphones.

Description

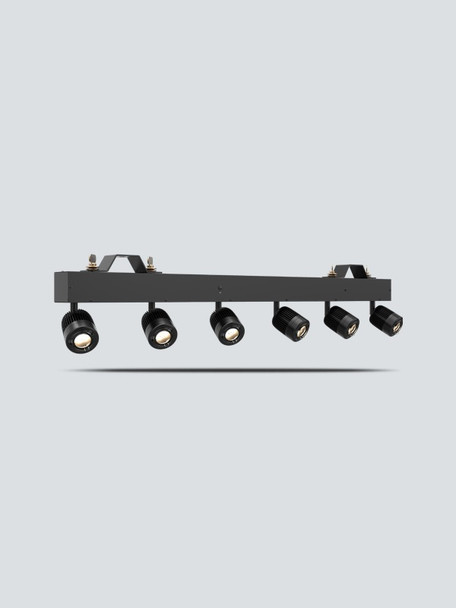

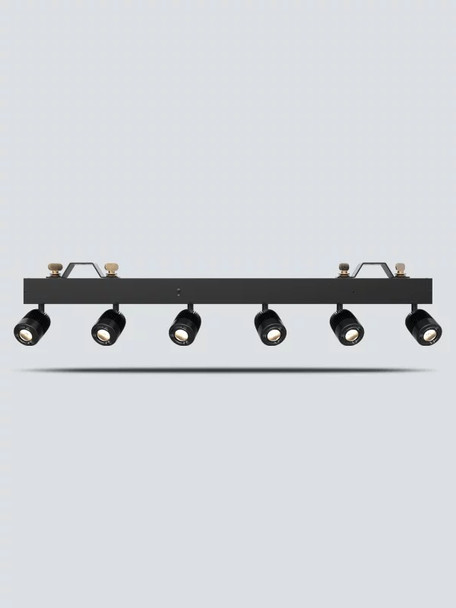

Pinspot Bar

From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness pinspotting power with Pinspot Bar. Pinspot Bar is a high-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps. Independent control of each head offers true flexibility and programming capabilities. Achieve a clean and elegant look for any upscale event with only a single PowerCon-compatible power input—no messy cables—along with power linking capabilities that save time running cables to other fixtures. Pinspot Bar includes various beam diffusers and CTO filters to help achieve your desired look. A pair of included Omega brackets allow for multiple mounting options including pipe and drape. Control Pinspot Bar via the on-board digital display, DMX, wireless IRC-6 remote, or D-Fi USB dongle.

Highlights

  • High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps

  • No messy cables ensure a clean and elegant look for any upscale event

  • Independent control of each head offers true flexibility and programming capabilities

  • Includes various beam diffusers and 2700 K filters to help achieve the desired look

  • Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle

  • A pair of included Omega brackets allow for multiple mounting options including pipe and drape

  • PowerCon compatible power input and power linking saves time running cables

Specifications

  • DMX Channels: 1, 6 and 11
  • DMX Connectors: 3- and 5-pin XLR
  • Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
  • PWM Frequency: 1000 Hz
  • Beam Angle: 5°
  • Field Angle: 11°
  • Illuminance: 7,707 lux @ 2 m (per pod)
  • Power Linking: 8 units @ 120 V; 13 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz
    191 W, 0.8 A @ 230 V, 50 Hz
  • Weight: 9.4 lb (4.3 kg)
  • Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm)
  • Approvals: CE, RoHS
  • Color Temperature: 4000 K
  • CRI: 81
  • Bracket Mounting Hole: 13 mm
  • Optional Controllers: IRC-6, D-Fi USB

WHAT'S INCLUDED

  • Pinspot Bar
  • Power cord
  • 2 Omega Brackets
  • 6 10° diffusers
  • 6 20° diffusers
  • 6 2700 K CTO filters
  • Quick Reference Guide
