Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)

Write a Review
$469.95
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
Bose Professional FreeSpace FS4CE In-Ceiling 4.5" 200W Passive Loudspeaker (Pair)
SKU:
841156
Width:
17.20 (in)
Height:
10.40 (in)
Depth:
28.00 (in)
Shipping:
Free Shipping
Current Stock:

With every purchase of $75 or more, use promo code "HOL24" at checkout to receive a free pair of Technical Pro HPS820 Professional Headphones.

Description

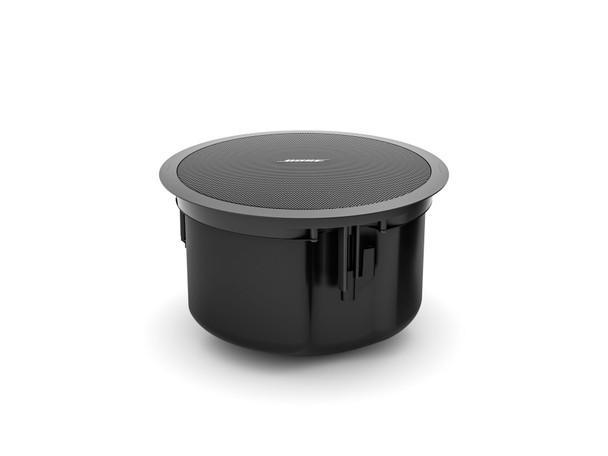

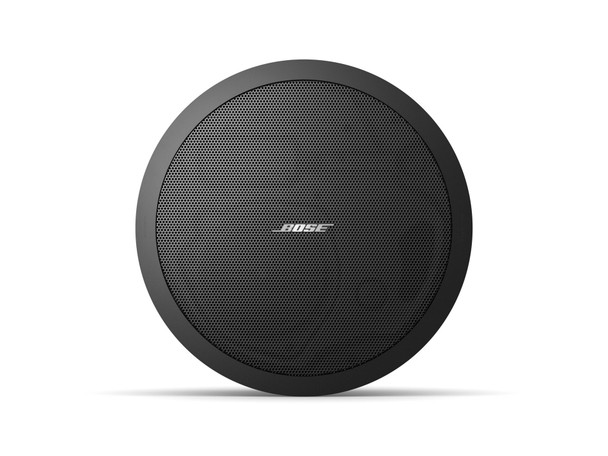

System installers looking for a high-quality in-ceiling speaker that's easy to install will be pleased with the black Bose Professional FreeSpace FS4CE, a pair of flush-mount passive loudspeaker with a single 4.5" full-range driver and a 115° conical coverage pattern for intelligible foreground/background music and speech reproduction in retail stores, restaurants, resorts, and more.

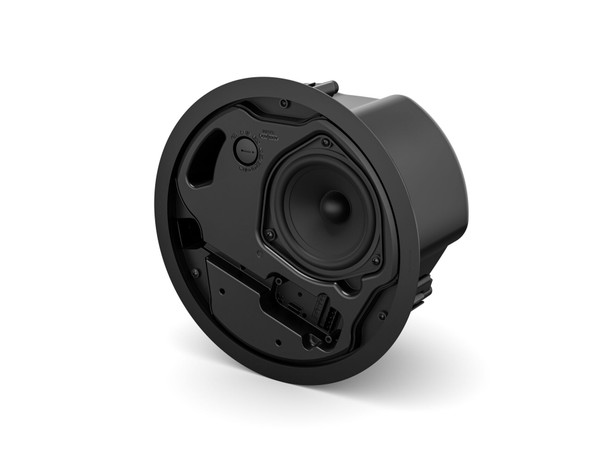

The FS4CE handles up to 200W peak power and is capable of producing a maximum peak SPL of 111 dB. The integrated multi-tap transformer can be configured for an array of 70/100V settings via a convenient thumbwheel beneath the grille. The FS4CE is voiced to ensure consistent tonality throughout the FreeSpace FS family, so it can be installed alongside other surface-mount and in-ceiling loudspeakers without compromising the system's sonic signature. The FS4CE includes cutout templates, mounting hardware, and two weather-resistant input covers.

  • Full-range 4.5" transducer, low-frequency range down to 70 Hz, 8-ohm and 70/100V operation
  • Front baffle-mounted tap settings and audio connections
  • Handles the weather, designed for outdoor wet installation
  • Maintain consistent tonal quality with shared voicing across all FS models
  • Hear the best of both music and voice with transducers that offer clear voice reproduction and smooth response for background music
  • Blend with more room designs with updated enclosures—available in black and white—that pair modern aesthetics with practical features, including removable logos
  • Tackle site-specific challenges with the support of a full suite of accessories designed to handle a wide range of applications and mounting options
  • Install with ease—all models feature Euroblock inputs and front-baffle input location on in-ceiling models
  • Support public safety—all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life-safety applications



Speaker
Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
50 W RMS
200 W Peak
Constant Voltage / Transformer Taps
70 V:
2.5 / 5 / 10 / 20 / 40 W or 8 Ohms Bypass
100 V:
5 / 10 / 20 / 40 W or 8 Ohms Bypass
Impedance
8 Ohms (Nominal, Transformer Bypassed)
Enclosure Type
Bass-Reflex
Shielded
No



Drivers
Full-Range Driver
1x 4.5" / 11.43 cm



Performance
Frequency Range
70 Hz to 17 kHz -10 dB
Frequency Response
80 Hz to 16 kHz ±3 dB
Maximum SPL
105 dB SPL (Continuous)
111 dB SPL (Peak)
Sensitivity
88 dB SPL
Coverage Angle
115° (Conical)
Recommended High-Pass Filter
70 Hz, 24 dB/Octave



Connectivity
Inputs/Outputs
1x Block 6-Pin Speaker Input
Maximum Wire Gauge
14 AWG / 2.5 mm



Physical
Environmental Resistance
Dust/Water-Resistant (IP55)
Operating Conditions
-13 to 158°F / -25 to 70°C
Color
Black/White
Cutout Size
9.8 x 9.8" / 24.9 x 24.9 cm
Mount Surface Thickness
Up to 1.5" / 3.8 cm
Construction Material
Metal Grille, Plastic, Steel
Dimensions
10.7 x 6.8" / 27.2 x 17.3 cm
Weight
7.6 lb / 3.4 kg
