Description

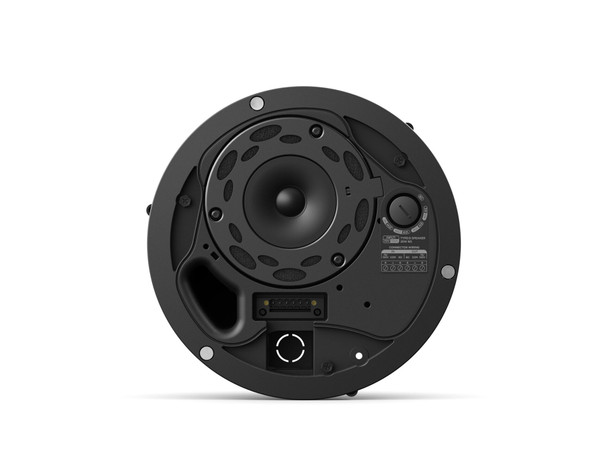

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.
-
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
-
Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
-
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
-

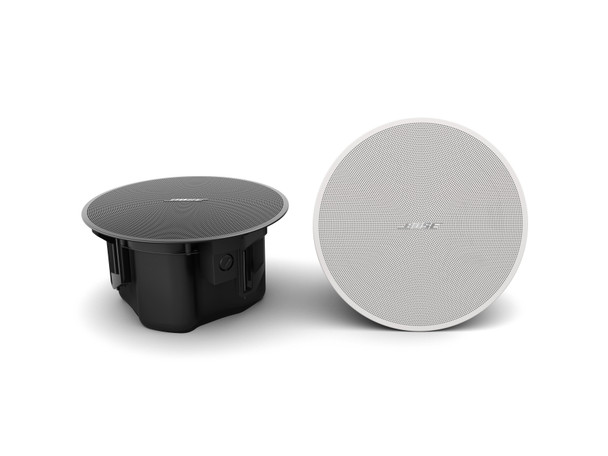

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
-

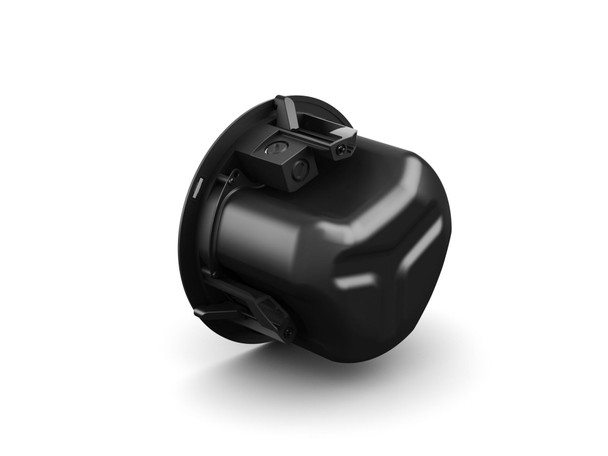

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
-
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Designed for a wide range of applications, including:
-
Performing arts venues
-
Places of worship
-
Conference centers
-
Retail stores
-
Restaurants and bars
-
Hospitality venues
Tech Specs
Environmental: |
Indoor only |
Logo: |
Rotatable, removable |
Frequency Range (-10 dB): |
75 Hz – 20,000 Hz |
Calculated Maximum SPL @ 1 m: |
98 dB |
Power Handling, long-term continuou: |
30 W |
Recommended Signal Processing: |
Not required, Bose Professional EQ voicing and SmartBass processing available |
Transformer Taps, 100V: |
6, 12, 25 W, bypass |
Coverage, Vertical: |
135° conical |
Coverage, Horizontal: |
135° conical |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
120 W |
Sensitivity (SPL/1 W at 1 m): |
83 dB |
Transformer Taps, 70V: |
3 W, 6 W, 12 W, 25 W, bypass |
