Description

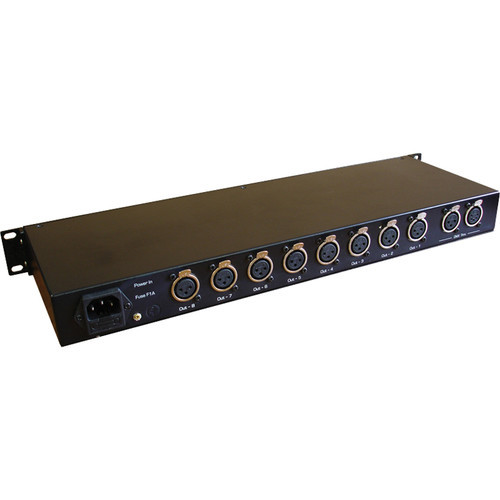

Blizzard Pipeline 8-Way DMX Distributor
Meet Blizzard's 8-way DMX distributor, the Pipeline™! The unit has 2x inputs and 8x outputs and features absolute electrical isolation between input and outputs and between all of the outputs. There are two types of DMX connectors (3-pin) for each individual channel. Each DMX output features an independent driver. Along with Blizzard's Pipeline™, you can run up to 32 units per one output channel.
Safe Construction
Fully compliant to DMX-512 and featuring 100% electrical isolation between in/output and output/output plus a terminator resistor sitch for the end of a DMX chain.
Smart Design
Featuring removable rack wins for rack or wall mounting plus 3-pin & 5-pin DMX input & DMX Thru and a sleek anodized aluminum front panel.
Attributes
- Fully compliant to DMX-512 (1990)
- 3-Pin and 5-pin DMX input and DMX Thru
- 100% electrical isolation between input/output
- 100% electronic isolation between output/output
- Signal and power LED indicator for each output
- Terminator resistor switch for end of a DMX chain
- Power input via IEC connector on rear panel
- Removable rack wings for Rack mount or wall mount
- Anodized aluminum front panel
Tech Specs
Inputs/Outputs: |
1x XLR 3-Pin 1x XLR 5-Pin Input 1x IEC |
Power Consumption: |
10 W |
AC Input Power: |
120 VAC, 60 Hz |
Protocol: |
DMX512 |
Material of Construction: |
Aluminum |
Rack Mount: |
Yes |
Dimensions: |
19.0 x 5.0 x 1.7" / 482.0 x 130.0 x 44.0 mm |
Weight: |
5.7 lb / 2.6 kg |
