Description
Product Overview
Avolites DMX splitters will buffer, multiply, isolate and protect console DMX outputs.
The device operates from any AC mains voltage ( 85 to 265v ) with a robust 2 amp internal power supply. Standard units have DMX in, DMX loop out, Terminate On switch and LED, plus additional Power and Data LED's.
The Truss splitter has three pairs. These are optically isolated from each other and can be standard 5 pin or 3 pin or 3 pin reverse. Internally, the circuit board carries spare IC's enabling you to get up-and-running again very fast in the case of an emergency.

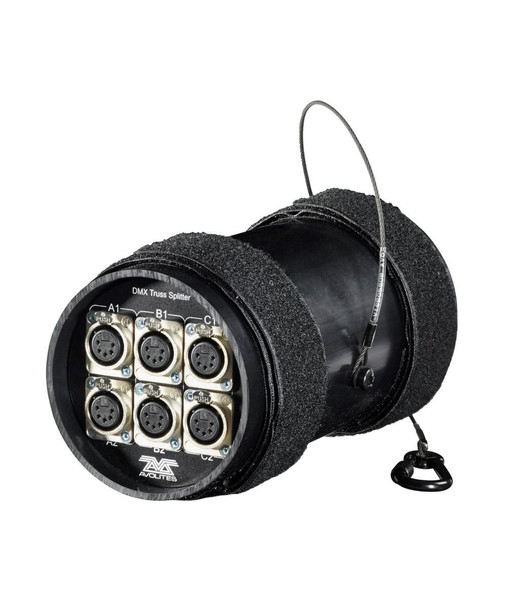

The reliable and resilient principals of Tube Technology are utilised by Avolites in the Truss Mounting DMX splitter. Cased in a thick-wall, rigid plastic tube, the splitter is designed to attach to anything. The use of two heavy duty velcro straps means the Truss Mounting splitter needs no special clamps or other fixings. In addition to the velcro, there is a safety wire and clip.
Product Features
- 1 - in, 6 - out with 5-Pin XLR
- Optical isolation protects from rogue voltages
- Velcro truss mount
- Rugged plastic construction
- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready. Add any Ai product to unlock seamless video integration
Product Specifications
- 5-pin XLR in and loop out
- 6 x 5-pin XLR outputs
- All outputs optically isolated
- IEC mains input
- Safety cable included
