ADJ SAB310 - Saber Bar 6

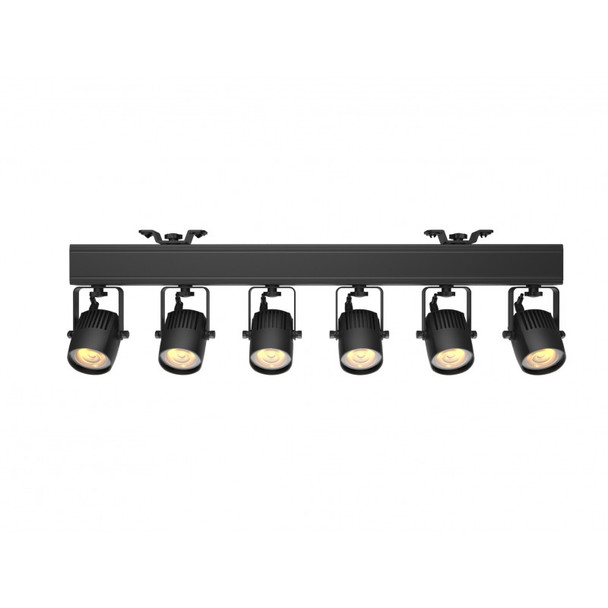

The Saber Bar 6 is a 6-head pinspot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot is similar to the Saber Spot WW with a 15W Warm White LED (3100K) and an ACL lens that produces a razor sharp 4-degree beam. Each fixture’s X/Y axis may be individually adjusted manually for precision angling of the beams. There are two heavy duty adjustable brackets to mount the fixture to a ceiling or truss.

The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is s ideal for performance stages, installations, table spotting and lighting in retail stores.

Specifications

Light Source:

• LED: 6x 15W Warm White LEDs (50,000 hr.)

• Color Temperature: 3100K

• CRI: 96

• Beam Angle: 5-degrees

Features:

• All metal construction with black housing

• ACL lens for razor sharp beams

• Includes heavy duty adjustable brackets for hanging

• Individually adjust X/Y axis of each fixture manually

Construction:

• Display with function buttons

• Data In/Out: 3-pin and 5-pin DMX In/Out to link data

• Power locking In/Out connections to daisy chain power

• Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240V

Control:

• Multiple DMX channel modes

• Control Modes: DMX512, RDM

• Built-in internal programs

• 0-100% Dimming + smooth 16-bit fine dimming

• 6 Dimming Curve Modes

• Adjustable LED refresh rate

• Strobe & Pulse effects

• With Wired Digital Communication Network

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 85W max

Dimensions & Weight:

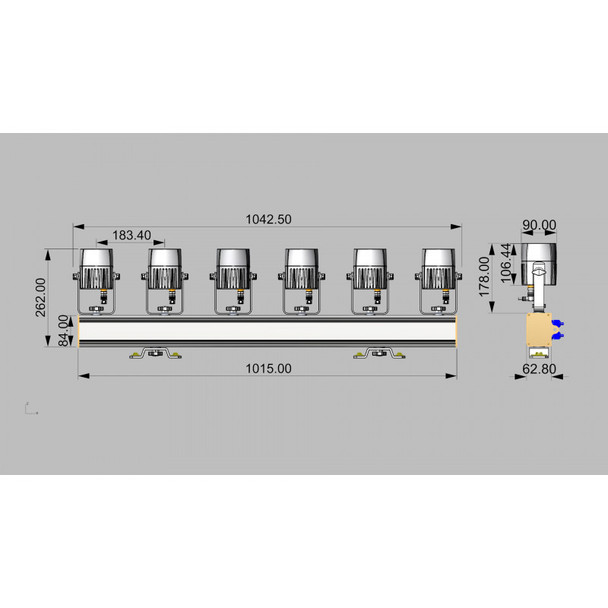

• Dimension (LxWxH): 39.5” x 11.5” x 3.75” / 1005x292x95mm

• Weight: 25 lbs. / 11.3 kg.
