American DJ

ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case

$5,299.99
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
ADJ WMS2 Media Sys LED Display Solution with 2 WMS2 LED Panels, Novastar Processor & Flight Case
SKU:
WMS439
UPC:
810087374228
Width:
45.50 (in)
Height:
27.25 (in)
Depth:
28.25 (in)
Shipping:
$150.00 (Fixed Shipping Cost)
Current Stock:

Description

The ADJ Lighting WMS2 Media Sys is a powerful LED display solution equipped with two WMS2 LED panels, an integrated Novastar processor, and a rugged flight case. Boasting a 2.6mm pixel pitch, vivid visuals, and hassle-free setup, it’s ideal for retail, events, and dynamic digital signage.

Specifications:

• Pixel Pitch (mm): 2.6
• Pixel Density (dot/m2): 147,456
• LED sealing Type: SMD1515
• Module Size (mm x mm): 250 x 250mm
• Module Resolution (PX x PX): 96 x 96 Dots
• Panel Resolution (PX x PX): 384 x 192
• Average Life (Hours): 50,000

Features:

• Transport: Single System Flight Case
• One WMS2 Media System
• Installation Method: Roll and Set
• Maintenance: Front
• Configuration*: CFD455, 3840Hz.

Optical Ratings:

• Brightness (cd/m2): 700-800 NITS
• Horizontal Viewing Angle (Deg): 160
• Vertical Viewing Angle (Deg): 140
• Grey Scale (Bit): ≥14
• Refresh Rate (Hz): 3840

Power Supply:

• Input Voltage (V): 100-240VAC
• Max Power Dissipation (W/m²): 520
• Average Power consumption (W/m²): 180

Control System:

• Receiving Card in WMS2 Panels: Novastar A8s-N
• Processor: Novastar TB50

Environmental:

• Working Environment: Indoor
• IP Rating: IP20
• Working Temperature (℃):-20~ +40
• Work humidity (RH): 10%~90%
• Storage temperature range:-40~ +80
• Operation humidity (RH):10%~90%

Weight / Dimensions:

• Flight Case Dimensions (LxWxH): 45.50" x 28.25" x 27.25" (1155 x 714 x 689.52mm)
• System Dimensions (LxWxH): 26.76” x 19.68” x 84.3” (679.6 x 499.8 x 2141mm)
• LED Panel Thickness: 1.32" (33.4mm)
• System Weight (In Flight Case): 176lbs. (80kg)

Approvals:

• Certificates: WMS2 LED Panels are ETL Certified

Optional Accessories:

• EVSVAC (Vacuum Tool for EVS & WMS Series Module Removal) ADJ strongly recommends that every customer owns this tool- especially if the display will be collapsed for storage or transport.

System includes:

1x WMS2 Media System: 2x WMS2 LED Video Panels

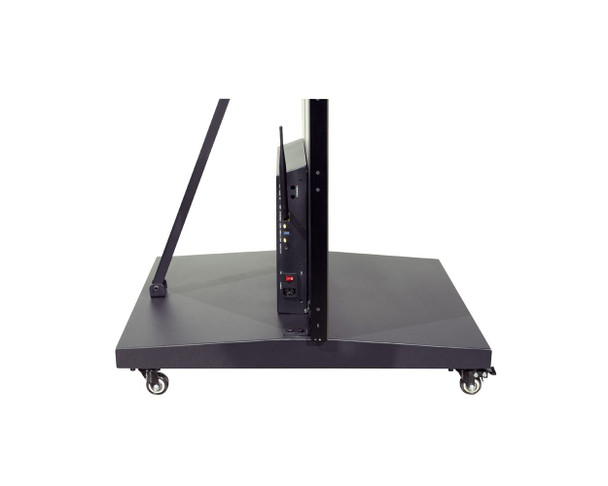

1x Display Stand with Built-In Novastar Video Processor

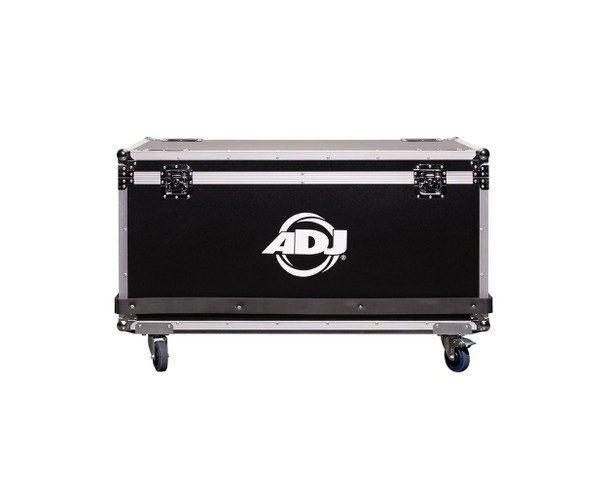

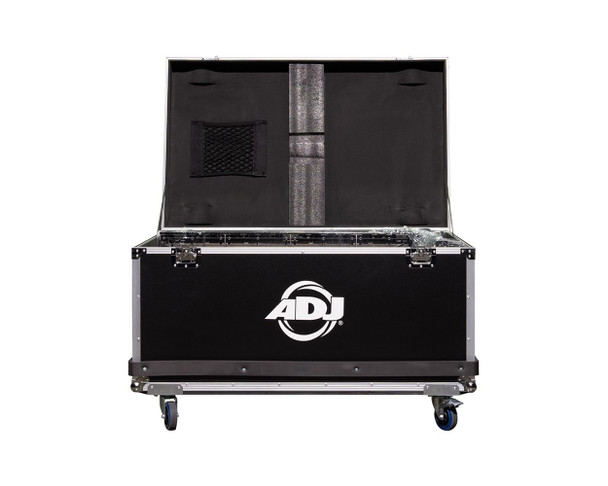

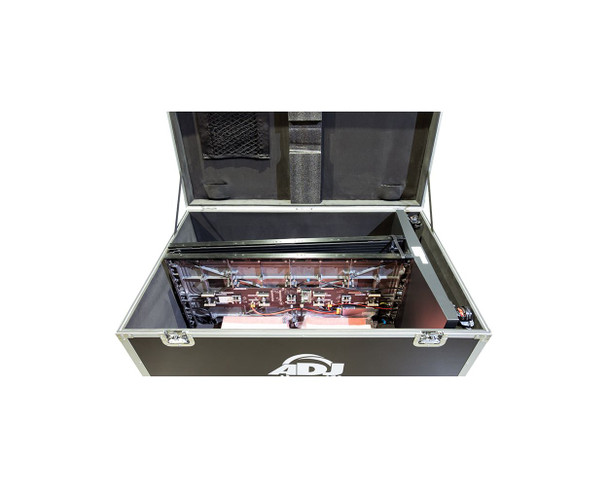

1x Flight Case
