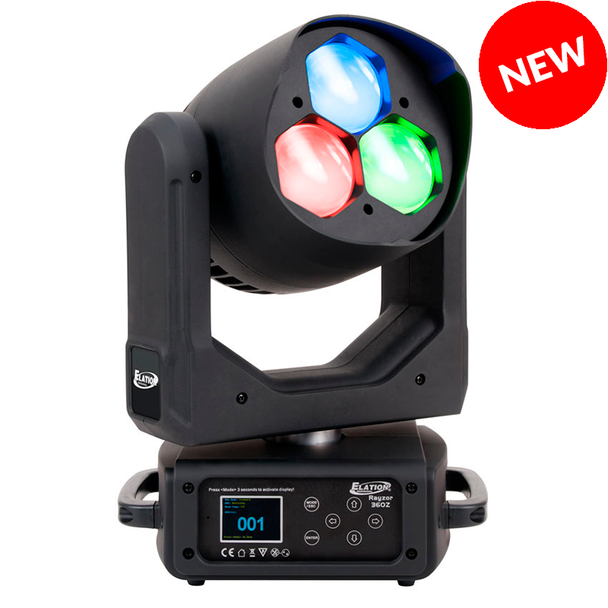

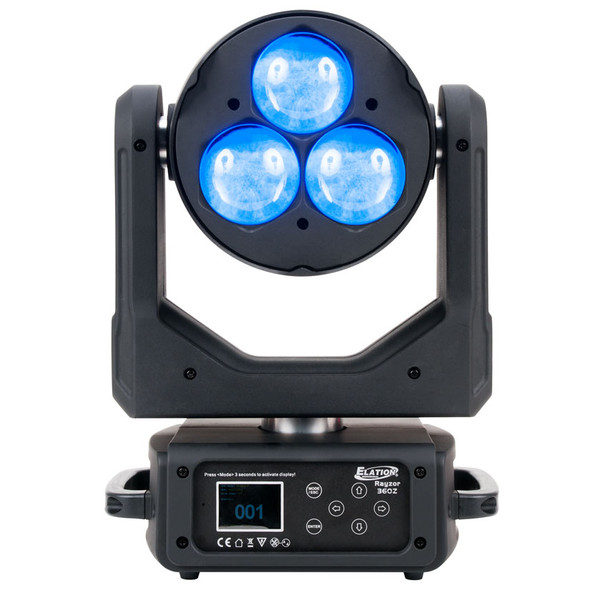

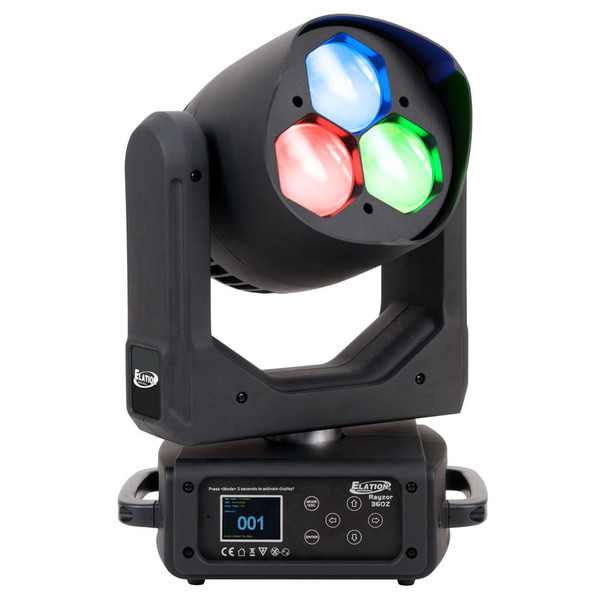

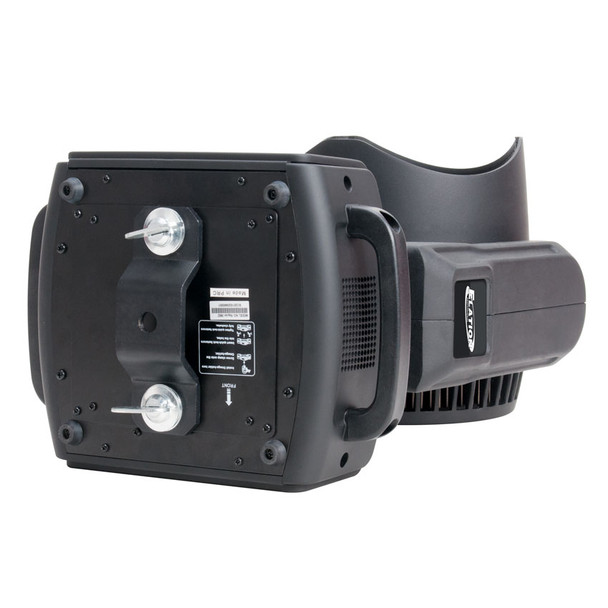

Elation Lighting Rayzor 360Z
The RAYZOR 360Z™ is a brilliant compact beam moving effect luminaire with (3) 60W Osram™ RGBW LEDs. Features include 8° to 77° motorized zoom, fast and precise 16-bit continuous full 360° pan and tilt rotation, pixel control, adjustable color temperature (2,700K - 8,000K), electronic strobe, dimmer, and selectable dimming curve effects, DMX, RDM (Remote Device Management), and Art-NET support, 5pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out connections, (7) button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Features
- Compact Beam Moving Effect Luminaire with Zoom
- (3) 60W Osram™ RGBW LEDs
- 8° to 77° Motorized Zoom and Pixel Control
- Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
- Linear Color Temperature Presets (2,700 - 8,000K)
- Adjustable Refresh Rate Frequency and GAMMA
- DMX, RDM, Art-NET, sACN Support
Specifications
SOURCE
(3) 60W Osram™ RGBW LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental
Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
28,020 LUX 2,603 FC @6.6’ (2m) (8° Min Zoom) Full ON
545 LUX 51 FC @6.6’ (2m) (77° Max Zoom) Full ON
EFFECTS
8° - 77° Beam Angle Zoom
Linear Color Temperature Presets (2,700 - 8,000K)
RGBW Color Mixing and Pixel Control
8 Color Presets and 8 Chase Macros
Electronic Strobe and Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (20 / 26 / 32)
360° Continuous Pan and Tilt Movement
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
(6) Button Touch Control Panel
8 / 16 Bit Resolution Adjustable Movement
Full Color 180° Reversible LCD Menu Display
5pin XLR DMX In/Out
RDM (Remote Device Management)
RJ45 etherCON In/Out (Art-NET, sACN)
powerCON TRUE1 Power In/Out
SIZE / WEIGHT
Length: 11.0” (280.6mm)
Width: 7.9” (199.5mm)
Vertical Height: 16.6" (422.1mm)
Weight: 17 lbs. (7.7 kg)
ELECTRICAL
/ THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
5F to 113°F (-15°C to 45°C)
Approvals / Ratings
CE | RoHs | IP20
