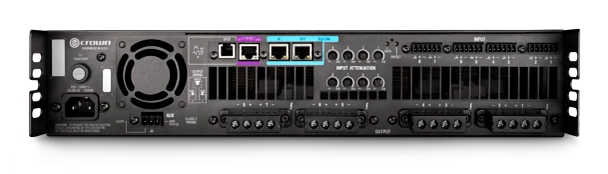

Crown DCi 8|300N 8x300W Power Amplifier

Write a Review
$6,780.00
Crown DCi 8|300N 8x300W Power Amplifier
Crown DCi 8|300N 8x300W Power Amplifier
Crown DCI8X300N-U-USFX - IMG01
SKU:
DCI8X300N-U-USFX
UPC:
6.91991E+11
MPN:
6.91991E+11
Shipping:
Free Shipping
Current Stock:

With every purchase of $75 or more, use promo code "HOL24" at checkout to receive a free pair of Technical Pro HPS820 Professional Headphones.

Description

The new DriveCore install series amplifiers is a complete line of high performance installation amplifiers based on the proprietary DriveCore technology. DCi Series amplifiers are designed, engineered and manufactured to the industryÕs highest quality standards, and provide system integrators with the advanced features and flexibility required for challenging 21st century installed sound applications. Versatile, compact and highly energy-efficient, DCi Series amplifiers continue the unbroken Crown tradition of leadership in professional and commercial power amplifier technology.

Get DCi Certified!

Network Power Matrix

Network Power Matrix Bridge

Recommended for: Installed Sound, Cinema, Recording Broadcast.

Features

ANALOG & DIGITAL INPUTS Ð With digital audio transport via HARMANÕs proprietary BLU-Link, plus balanced analog inputs, DCi gives you a tremendous audio advantage Ð at a much lower cost. The priority input router allows you to specify a primary input, and if audio is lost the amp automatically switches to the other input.

NETWORK MONITORING & CONTROL Ð Better monitoring, control and audio manipulation with the HiQnetª protocol thatÕs over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.

PROGRAMMABLE GENERAL PURPOSE INPUT/OUTPUT PORTS Ð GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.

DIGITAL SIGNAL PROCESSING Ð DSP capabilities include the following:

  • LevelMAX Limiters
  • Input/Output EQ
  • Delay
  • Matrix Mixer
  • Speaker Line Monitoring

Specifications

Frequency Response ( 8 Ohms, 20 Hz - 20 kHz) +/- 0.25 dB
BLU Link Input Signal to Noise Ratio (A-Weighted) > 104dB
Total Harmonic Distortion (at full rated power, 20 Hz - 20 kHz) 0.35%
Voltage Gain 34 dB
Damping Factor (20 Hz to 100 Hz) >1000
Input Impedance (nominal balanced, unbalanced) 10 kOhms, 5 kOhms
Maximum Input Level before Compression +20 dBu
Load Impedance (Stereo/Dual Mode) 2 - 16 Ohms; 70Vrms and 100Vrms
Load Impedance Bridge Mono 4 - 16 Ohms; 140Vrms and 200Vrms
Cooling Continuously variable speed forced air, front to back airflow
Maximum Fan Noise (re dBA SPL @ 1M) 47
Required AC Mains (+/- 10%) 100V-240V ~ 50/60 Hz
Dimensions 19" x 3.5" x 14.25" (48.3cm x 8.9cm x 35.63cm)
Weight 23.5lbs (10.66kg)
IEC Power Connector 15A
